K50LGRYPQP Banner Pick-to-Light Sensors

K50LGRYPQP on Powermatic Associates
Banner

Part#:K50LGRYPQP

Manufacturer:Banner

Alt. Part#:74967

Product Lifecycle:Active

In-stock parts: 1

Nov 23, 2024

K50 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red Yellow; 150 mm (6 in) PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50LGRYPQP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    154.22128 g
  • Country Of Origin
    CN
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Modbus RTU
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Feature: Washdown Rated
    Yes
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 58.0
  • Max Op. Temperature (°C)
    50
  • Max Input Response Time (ms)
    1
  • Input Type
    PNP
  • Supply Voltage
    18-30 V dc
  • Number of Input Pins/Conductors
    4
  • Max Current Color (mA)
    40
  • Color Option 3
    Yellow
  • Color Option 2
    Red
  • Connection
    Pigtail QD
  • Quick Disconnect Type
    M12 (Euro)
  • Animation Option 1
    Solid On
  • Product Size (mm)
    50
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Number of Colors / Segments
    3
  • Mounting Thread
    M30 x 1.5
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Indication
    Yes
  • Housing Style
    Base Mount - Dome Window
  • Primary Housing Material
    Polycarbonate
  • Power Source
    DC
  • Power
    DC
  • Cable Length (m)
    0.15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50LGRYPQP Description

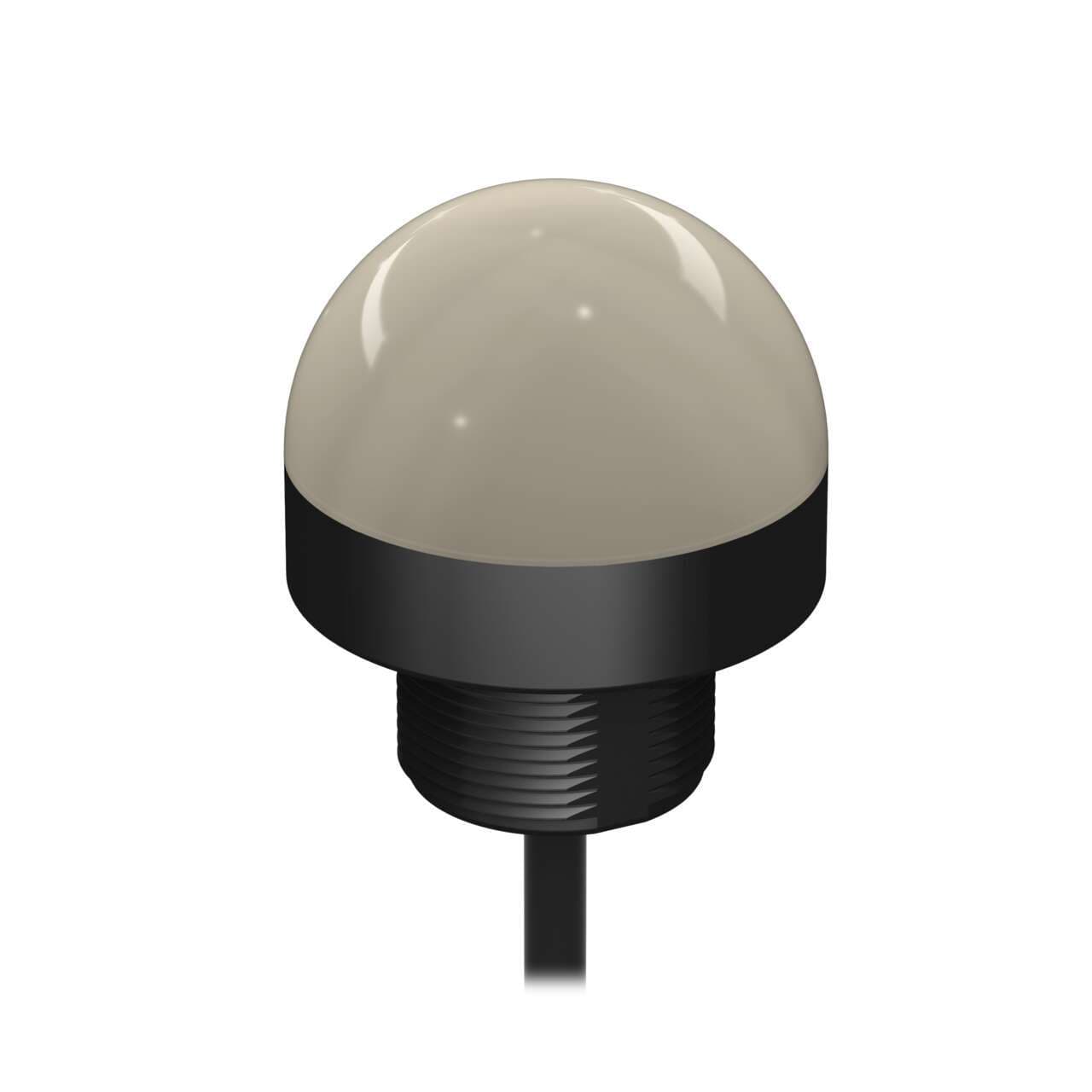

Banner Engineering K50LGRYPQP is a pilot light from the EZ-LIGHT series designed with a 3-color G/R/Y color pattern LED illumination for clear signaling. It features a black housing with a dome window shape, constructed from polycarbonate for both the diffused window and the base, ensuring durability. This part is pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. It operates on a supply voltage of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage, and can be mounted on a surface, base, or pole flush with a 30mm hole and M30 thread. The dome has a diameter of 50mm (2 inches), and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. The K50LGRYPQP offers a high degree of protection with ratings of IP67 and IP69K, indicating its resistance to dust and water ingress. It has a current consumption of 40mA and includes 3 digital inputs (18-30Vdc; PNP) for color control.

Related documents K50LGRYPQP Specs

K50LGRYPQP 203619.pdf
