K50LRXXPPB2Q Banner Pick-to-Light Sensors

K50LRXXPPB2Q on Powermatic Associates
Banner
  • K50LRXXPPB2Q
  • K50LRXXPPB2Q

Part#:K50LRXXPPB2Q

Alt. Part#:32020

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

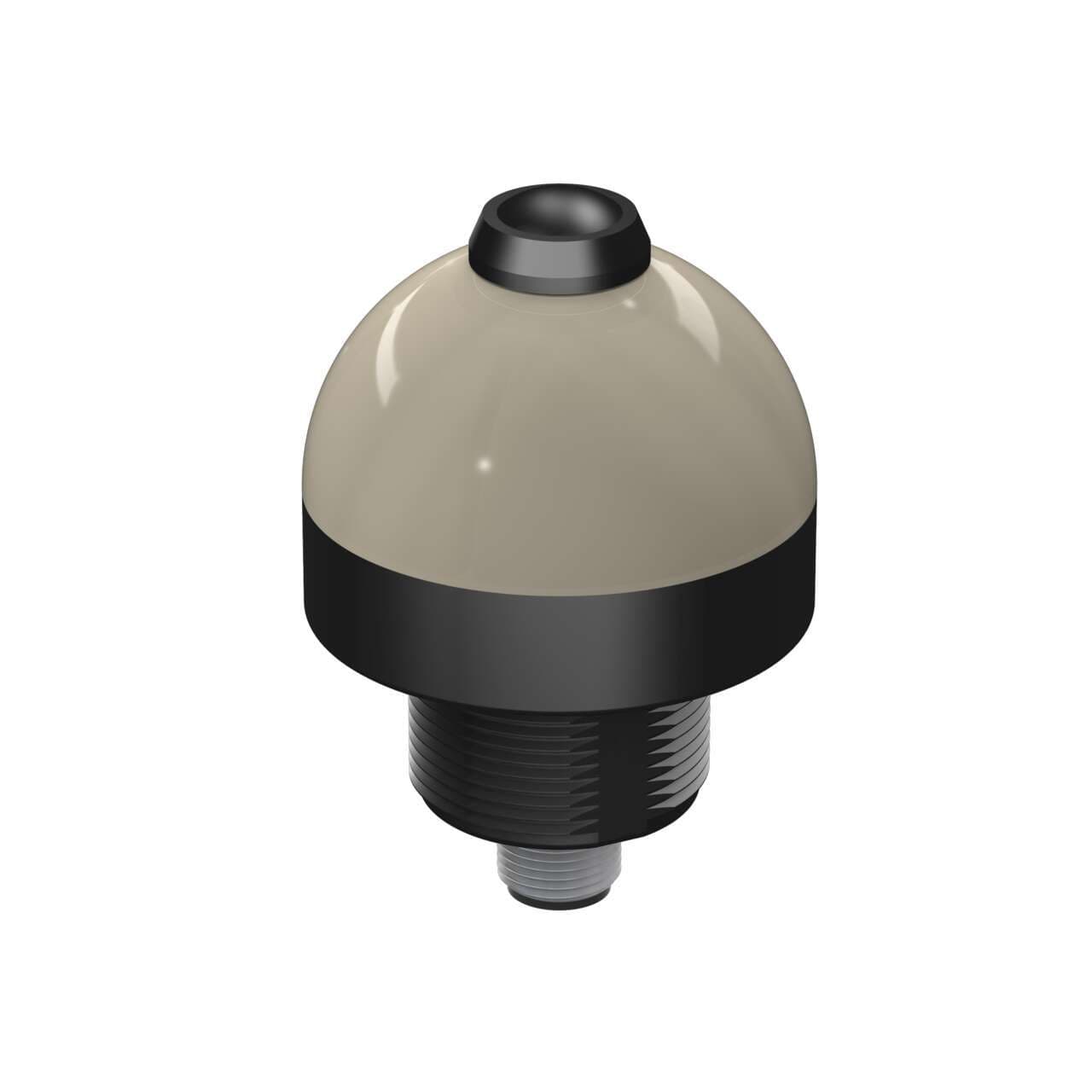

K50L Series EZ-LIGHT: 1-Color Indicator with Dry Contact Switch; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Red; 4-pin M12 Integral QD

Product Details

  • Weight
    181.4368 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Feature: Quick Disconnect
    Yes
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Secondary Material
    Thermoplastic
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Environmental Rating
    IP65
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 74.7
  • Input Type
    PNP
  • Supply Voltage
    12-30 V dc
  • Output Type
    Dry Contact
  • Operation
    Normally Open
  • Animation Option 1
    Solid On
  • Number of Input Pins/Conductors
    4
  • Connection
    Integral QD
  • Color Option 1
    Red
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    65
  • Quick Disconnect Type
    M12 (Euro)
  • Product Size (mm)
    50
  • Housing Style
    Base Mount - Dome Window
  • Primary Housing Material
    Polycarbonate
  • Actuation
    Yes
  • Activation Function
    Push-Button
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    1
  • Mounting Thread
    M30 x 1.5
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LRXXPPB2Q on Powermatic Associates is $127.00. Order now.


About the product

Banner Engineering K50LRXXPPB2Q, part of the EZ-LIGHT series, is a pilot light designed with a 1-color Red LED illumination housed in a black casing. This unit features a dome-shaped window made from diffused polycarbonate (PC) and a base constructed from the same material, ensuring durability. It comes pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads for easy installation. The K50LRXXPPB2Q operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc, and is designed for surface, base, or pole flush mounting using an M30 thread in a 30mm hole. The dome has a diameter of 50mm / 2 inches. It is engineered to function within an ambient air temperature range of -40°C to +50°C and offers a high degree of protection with ratings of IP67 and IP69K. The current consumption is rated at 40mA, and it features 1 x digital input (18-30Vdc; PNP) for color control.
