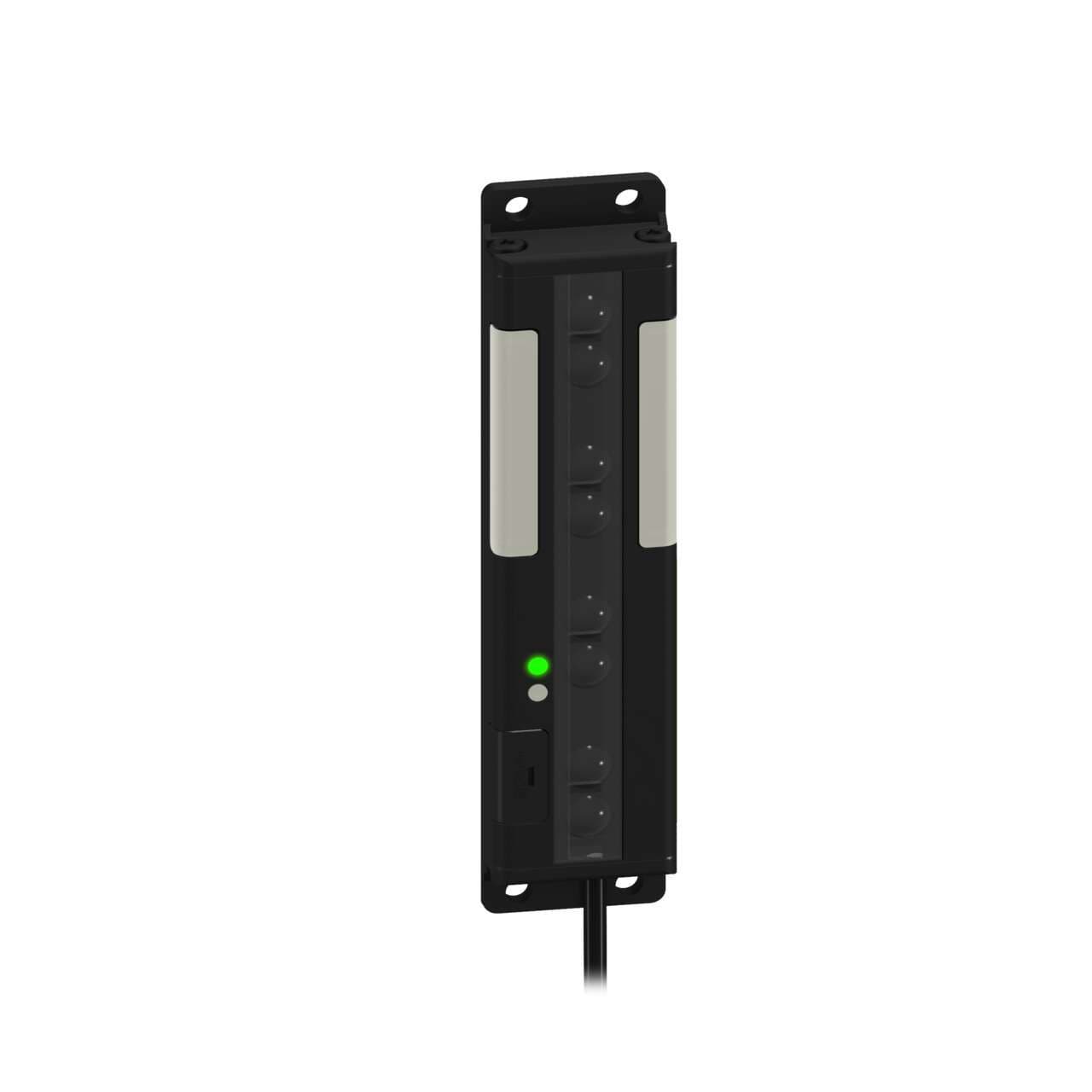

PVD100QPMA29 Banner Pick-to-Light Sensors

PVD100QPMA29 on Powermatic Associates
Banner
  • PVD100QPMA29
  • PVD100QPMA29

Part#:PVD100QPMA29

Alt. Part#:18481

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

PVD Series: Parts Verification; 100 mm 4 channel; Range: up to 2 m; Input: 12-30 V dc; Outputs: Selectable NPN/PNP; 5-pin M12 2 m (6.5 ft) PUR Pigtail QD; Modified for Automotive; See Literature Insert

Product Details

  • Weight
    181.4368 g
  • Country Of Origin
    MX
  • Job Light
    Green
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Acrylic Clear
  • Sensing Resolution (mm)
    51
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • NEMA Type and UL Type Rating
    NEMA 2
  • Physical Dimensions (LxWxH or DxH mm)
    137.8 x 30.0 x 15.0
  • Environmental Rating
    IP62
  • Number of Beams
    4
  • Beam Spacing (mm)
    28.6
  • Array Length (mm)
    100.0
  • Sensing Array Length (mm)
    100
  • Maximum Sensing Distance (mm)
    400/2000
  • Input Type
    Bimodal (PNP/NPN)
  • Max Input Response Time (ms)
    400
  • Output Type
    Bipolar (NPN or PNP - user selectable)
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open/Normally Closed
  • Number of Input Pins/Conductors
    5
  • Mis-Pick Light
    Red
  • Max Current Color (mA)
    88
  • Color Option 2
    Red
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Lumens Color 2
    2.5
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 1
    12.0
  • Color Option 1
    Green
  • Quick Disconnect Type
    M12 (Euro)
  • Color Technology
    Standard LED
  • Connection
    Pigtail PUR QD
  • Animation Option 1
    Solid On
  • Product Size (mm)
    Other
  • Number of Colors / Segments
    2
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Activation Function
    Optical
  • Sensing Mode (Detailed)
    Diffuse/Non-Polarized
  • Power Source
    DC
  • Primary Housing Material
    Aluminum
  • Sensing Mode (General)
    Retroreflective or Proximity
  • Mounting Thread
    No Thread
  • Actuation
    Yes
  • Power
    DC
  • Housing Style
    Flat Mount - Array

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVD100QPMA29 on Powermatic Associates is $367.00. Order now.

About the product

Banner Engineering PVD100QPMA29 is a photo-electric array sensor designed for a variety of applications. It operates within an ambient air temperature of +50°C and features a net height of 15 mm. This sensor supports both diffuse and retro-reflective sensing modes and comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads. The dimensions include a 225mm array length, with a rectangular shape, and it is housed in aluminium with an acrylic clear window. The net width and depth are 30 mm and 267 mm, respectively. It offers a sensing distance of up to 2m in retro-reflective mode and 400mm in diffuse mode, with a light color output of green and red. The beam spacing/pitch is 28.6mm. It operates with a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and provides a degree of protection rated at IP62 NEMA 2. The operating modes include NO (Normally Open) and NC (Normally Closed), with a wavelength of 525 nm and 625 nm for its light sources. Additionally, it features 1 x digital output (PNP/NPN transistor) for connectivity.
