PKG4MS-2 Banner Cordsets
Product Details
- Weight 49.89512 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Primary AWG 26
- Primary Number of Conductors 4
- Secondary AWG 26
- Secondary Number of Conductors 4
- Secondary Connector Type Flying Leads
- Primary Orientation Straight
- Primary Gender Female
- Primary Coupling Method M8 Thread
- IP Rating IP67
- Primary Connector Type PICO
- Minimum Temp. (°C) -40
- Current Rating (A) 2.0
- Coupling Material/Color Nickel Plated Brass
- Shield Type Coupling
- Voltage Rating (V) 125 V ac/dc
- Maximum Temp. (°C) 105
- Shield/No Shield Shield
- Trunk Length (m) No Trunk
- Outside Cable Diameter (mm) 4.3
- Connector Body Material/Color PUR Black
- Number of Connectors 1
- Cordset Length (m) 2.035
- Cable Jacket Material PVC
- Cable Jacket Color Black
- Number of Contacts 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PKG4MS-2 on Powermatic Associates is $83.00. Order now.
About the product

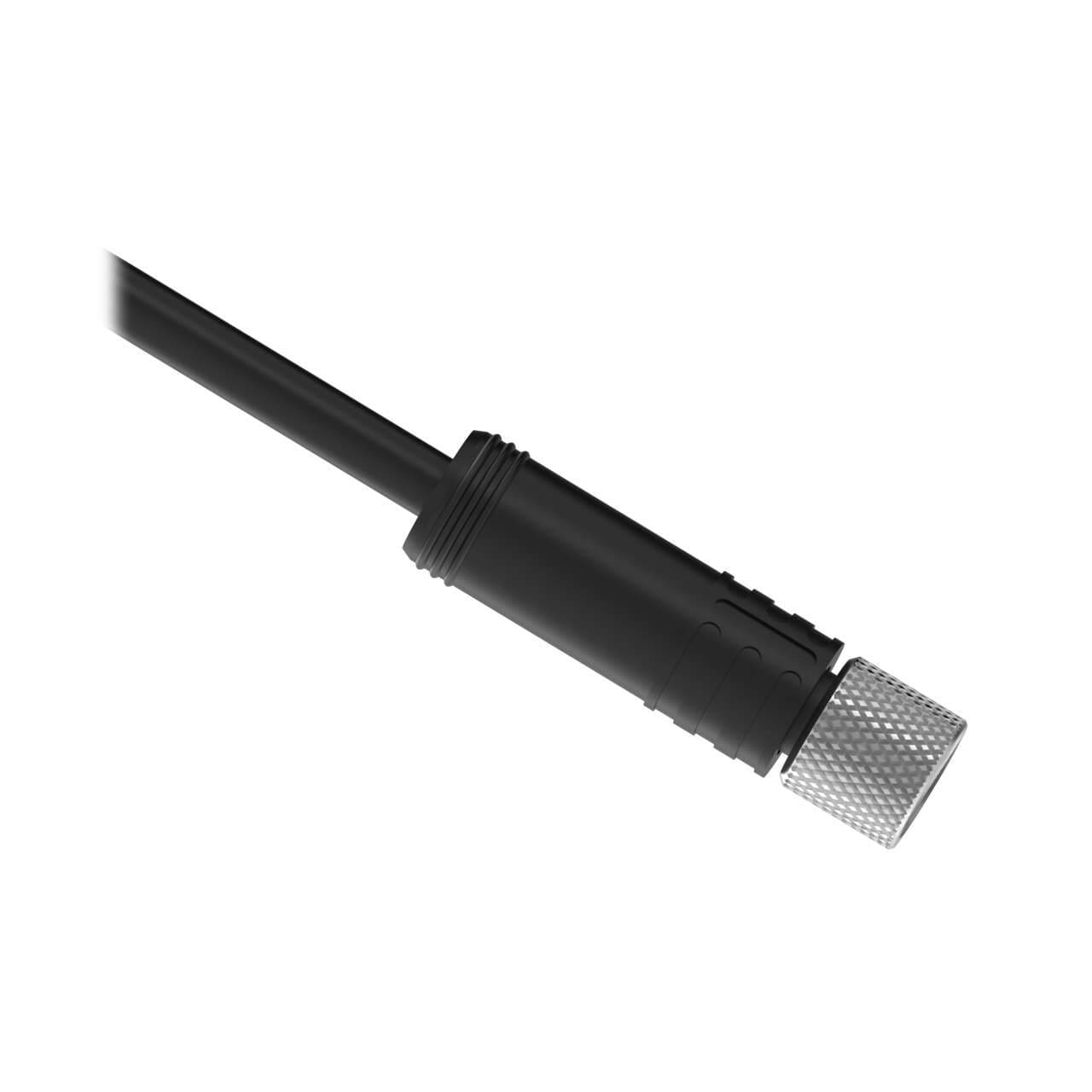

Banner Engineering PKG4MS-2 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 4-pin M8 female connector and bare end flying leads. The cable has a diameter of 4.4mm and is encased in black polyurethane (PUR) sheathing, ensuring durability and flexibility. It is 6.5 feet (2 meters) in length, allowing for easy installation across distances. This model operates effectively within an ambient air temperature range of -40 to +90 degrees Celsius and offers a degree of protection rated at IP67, making it suitable for use in environments where dust and moisture resistance is required. The PKG4MS-2 is rated for a voltage of 125Vac.
PKG4MS-2 Related Documents
Similar products from: Banner Cordsets
This item can ship within 0 day!
Manufacturer warranty
PKG4MS-2 Banner
$83.00
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$83.00
$83.00 each
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare PKG4MS-2 with other Cordsets products
Weight
Country Of Origin
Oil/Grease Resistant
Feature: Hazardous Area
Primary AWG
Primary Number of Conduct...
Secondary AWG
Secondary Number of Condu...
Secondary Connector Type
Primary Orientation
Selected product
PKG4MS-2
Banner
Cordset: Single Ended M8; 4-pin Straight Female; 2.04 m 4x26 Shielded Black PVC Jacket; Nickel-Plate...
Weight49.89512 g
Country Of OriginTW
Oil/Grease ResistantNo
Feature: Hazardous AreaNo
Primary AWG26
Primary Number of Conductors4
Secondary AWG26
Secondary Number of Conductors4
Secondary Connector TypeFlying Leads
Primary OrientationStraight
MQDEC2-515RA
Banner
Cordset: Single Ended M12; 5-pin Right Angle Female Connector; 5 m (16.4 ft) 5x22 Shielded Black PVC...
Weight244.93968 g
Country Of OriginUS
Oil/Grease Resistant-
Feature: Hazardous Area-
Primary AWG-
Primary Number of Conductors-
Secondary AWG-
Secondary Number of Conductors-
Secondary Connector Type-
Primary Orientation-
MQDC-315RA
Banner
Cordset: Single Ended MICRO; 3-pin Right-Angle Female C Code; 4.57 m 3x22 Black PVC Jacket; Black PV...
Weight184.611944 g
Country Of OriginTW
Oil/Grease Resistant-
Feature: Hazardous Area-
Primary AWG-
Primary Number of Conductors-
Secondary AWG-
Secondary Number of Conductors-
Secondary Connector Type-
Primary Orientation-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of PKG4MS-2?
Purchase the PKG4MS-2 from Powermatic Associates at the price of $83.00. Order today.
Out if stock but available for backorder.
Cordset: Single Ended M8; 4-pin Straight Female; 2.04 m 4x26 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
