PKG4S-2 Banner Cordsets
Part#:PKG4S-2
Manufacturer:Banner
Alt. Part#:73659
Product Lifecycle:Active
Get a quick Quote!

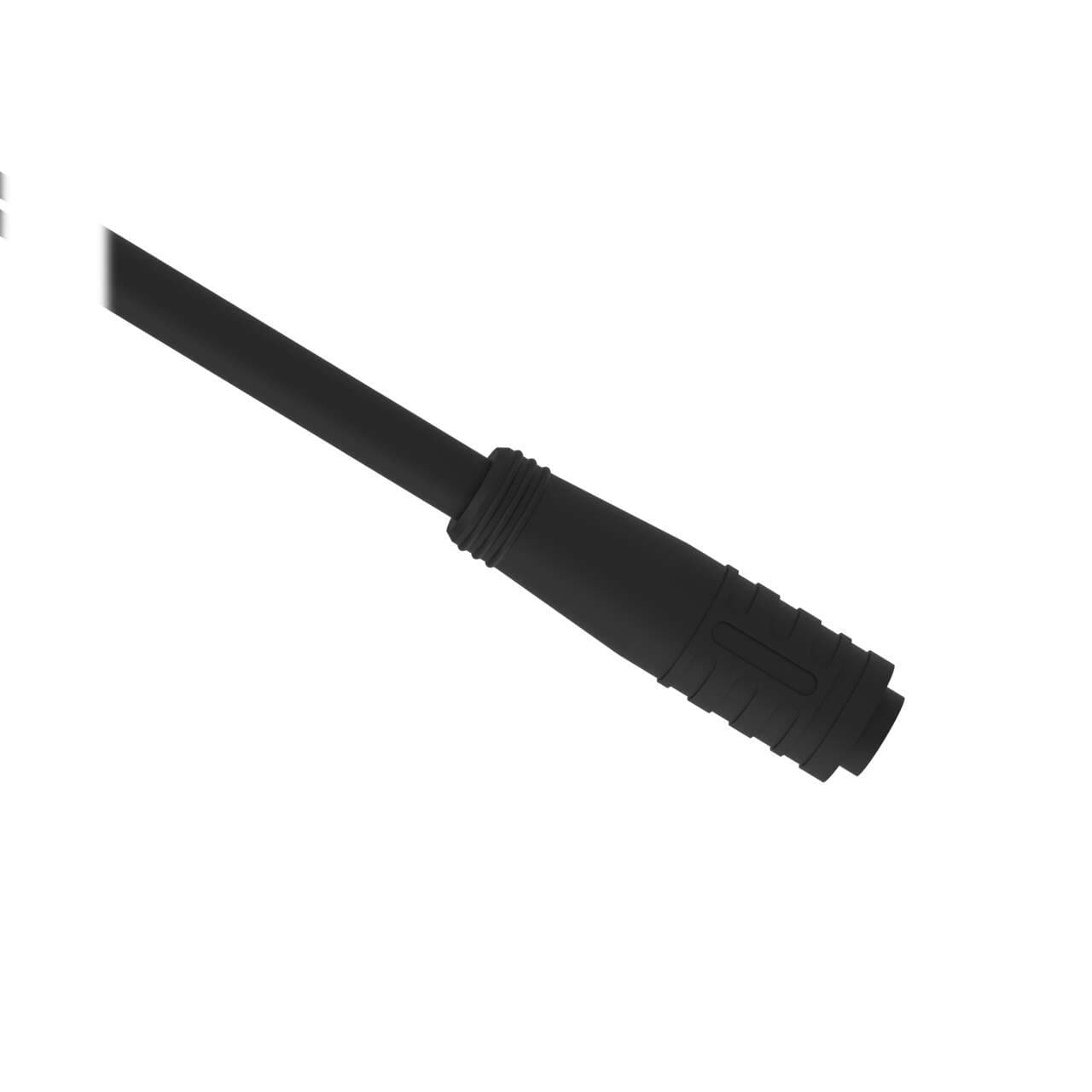

Cordset: Single Ended M8; 4-pin Straight Female; 2 m (6.56 ft) 4x26 Shielded Black PVC Jacket
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PKG4S-2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 54.43104 g
- Country Of Origin TW
- Primary AWG 26
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Primary Coupling Method M8 Snap
- Primary Orientation Straight
- Primary Gender Female
- IP Rating IP67
- Primary Connector Type PICO
- Current Rating (A) 2.0
- Shield/No Shield Shield
- Coupling Material/Color Nylon Black
- Cable Jacket Color Black
- Trunk Length (m) No Trunk
- Outside Cable Diameter (mm) 4.4
- Connector Body Material/Color PUR Black
- Secondary Connector Type Flying Leads
- Primary Number of Conductors 4
- Shield Type Open
- Voltage Rating (V) 125 V ac/dc
- Minimum Temp. (°C) -40
- Maximum Temp. (°C) 90
- Cordset Length (m) 2
- Cable Jacket Material PUR
- Number of Connectors 1
- Number of Contacts 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PKG4S-2 Description
Turck PKG4S-2 is a double-ended cable/cordset designed with a cross-wired configuration between pin-2 and pin-4. It features a 4.4mm cable sheath outer diameter and is capable of handling a rated current of 2A. This part includes a 4-pin M8 picofast female connector with a female snap-lock and a 4-pin M12 eurofast male connector with a T-barb fitting, belonging to the sub-range of M12 eurofast male straight to M8 picofast female straight connectors. The cable has dimensions of 0.7m or 70cm in length and offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. It is constructed with a nickel-plated brass coupling nut, POM locking sleeve, and a PVC jacket, all in black, including the moulded plugs and sheath. The cable is designed for a rated voltage of 125Vac, includes 4-wire circuits with a cross-section of 4 x #26AWG, and measures 70cm or approximately 27 inches in length.
