Part#:PKG4-3

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

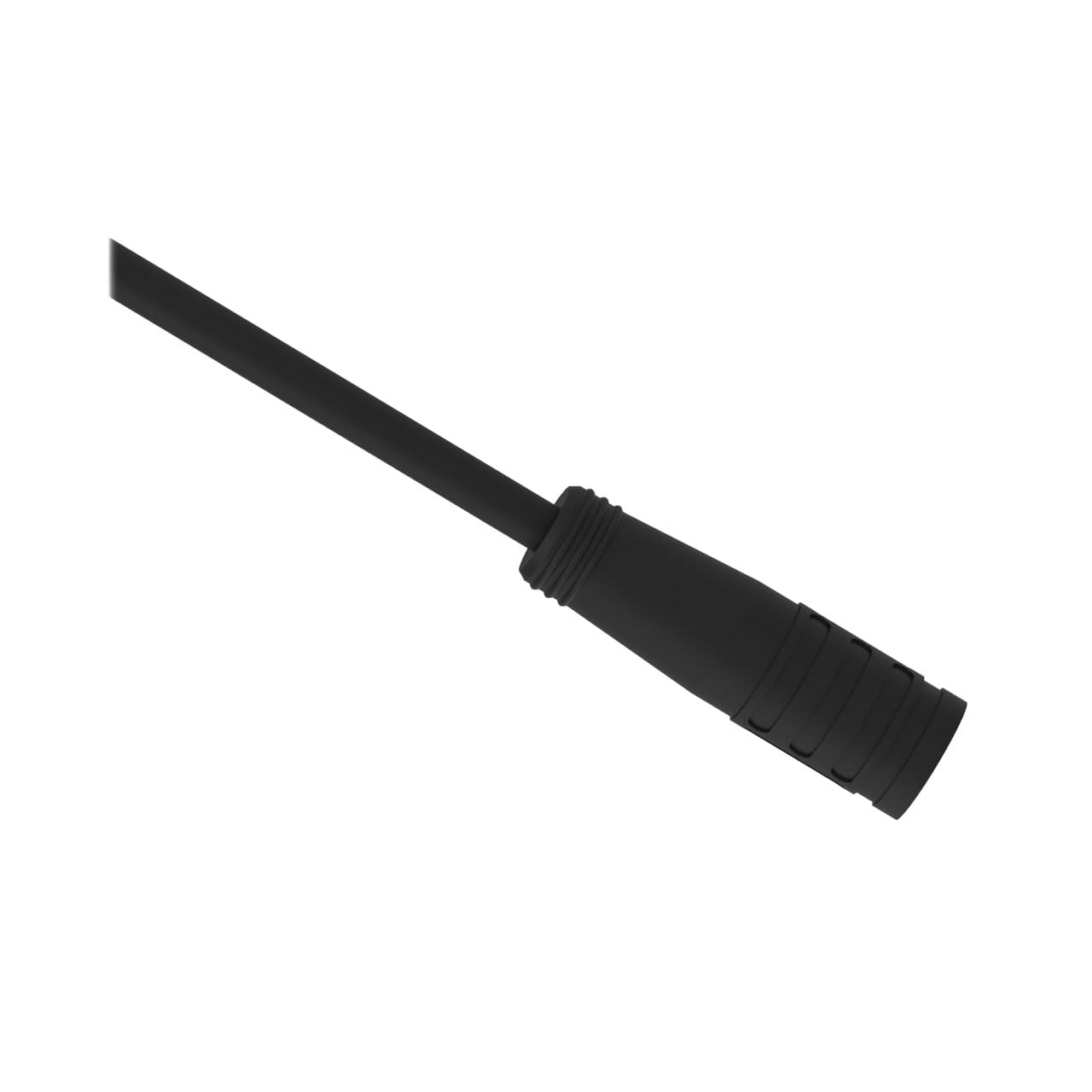

Banner Engineering PKG4-3 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 4-pin M8 female connector and bare end flying leads, facilitating easy and secure connections. The cable has a diameter of 3.2mm and is encased in black PVC sheathing, ensuring durability and protection against environmental factors. With an ambient air temperature operation range of -40 to +105°C, it is suitable for use in a wide range of environments. The PKG4-3 offers a degree of protection rated at IP67, making it resistant to dust and water ingress. It has a length of 96ft (30m) and is rated for a voltage of 125Vac, accommodating various installation needs.

Product Details

  • Secondary Connector Type
    Flying Leads
  • Feature: Hazardous Area
    No
  • Oil/Grease Resistant
    No
  • Primary Orientation
    Straight
  • Primary AWG
    26
  • Primary Number of Conductors
    4
  • Primary Coupling Method
    M8 Snap
  • Primary Gender
    Female
  • Primary Connector Type
    PICO
  • IP Rating
    IP67
  • Minimum Temp. (°C)
    -40
  • Voltage Rating (V)
    125 V ac/dc
  • Coupling Material/Color
    Nylon Black
  • Current Rating (A)
    2.0
  • Maximum Temp. (°C)
    105
  • Cable Jacket Material
    PVC
  • Number of Contacts
    4
  • Outside Cable Diameter (mm)
    3.2
  • Cable Jacket Color
    Black
  • Trunk Length (m)
    No Trunk
  • Cordset Length (m)
    3
  • Shield/No Shield
    No Shield
  • Connector Body Material/Color
    PUR Black
  • Number of Connectors
    1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
