PKG4M-2 Banner Cordsets
Product Details
- Weight 49.89512 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Primary Connector Type PICO
- Primary Coupling Method M8 Thread
- Feature: Hazardous Area No
- Secondary Connector Type Flying Leads
- Primary AWG 26
- Primary Number of Conductors 4
- Primary Orientation Straight
- Primary Gender Female
- IP Rating IP67
- Minimum Temp. (°C) -40
- Voltage Rating (V) 125 V ac/dc
- Current Rating (A) 2.0
- Maximum Temp. (°C) 105
- Shield/No Shield No Shield
- Coupling Material/Color Nickel Plated Brass
- Cable Jacket Color Black
- Number of Connectors 1
- Cordset Length (m) 2
- Trunk Length (m) No Trunk
- Cable Jacket Material PVC
- Number of Contacts 4
- Outside Cable Diameter (mm) 3.8
- Connector Body Material/Color PUR Black
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PKG4M-2 on Powermatic Associates is $37.00. Order now.
About the product

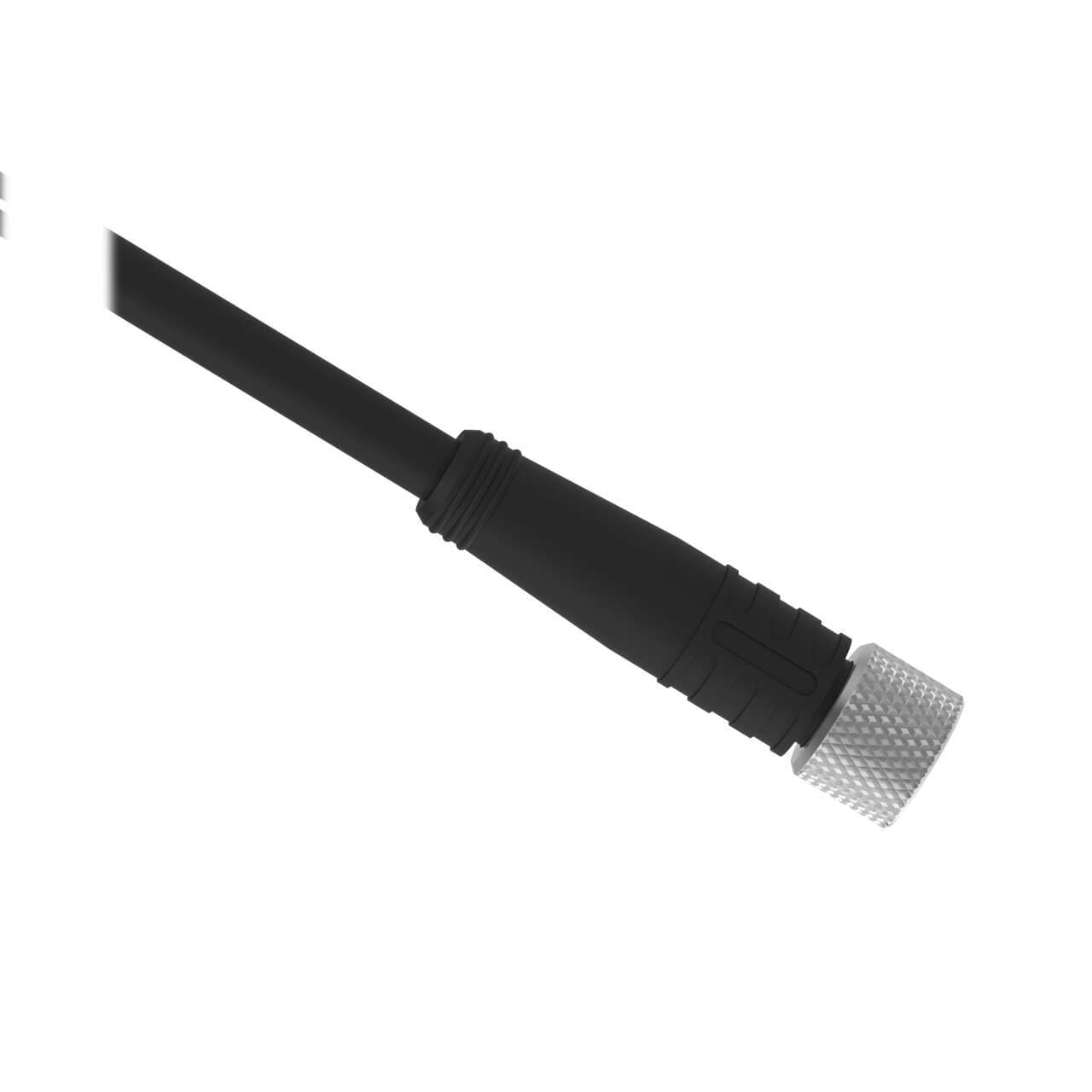

Banner Engineering PKG4M-2 is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 4-pin M8 female connector on one end and a 2-pin BNC male connector on the other. The cable has a diameter of 4.4mm and is encased in black PVC sheathing. It is 6.5 feet (2 meters) in length and can operate in ambient air temperatures ranging from -40 to +105 degrees Celsius. This model is rated for a voltage of 125Vac and offers a degree of protection rated at IP67, indicating its capability to withstand dust and water ingress in demanding environments.
