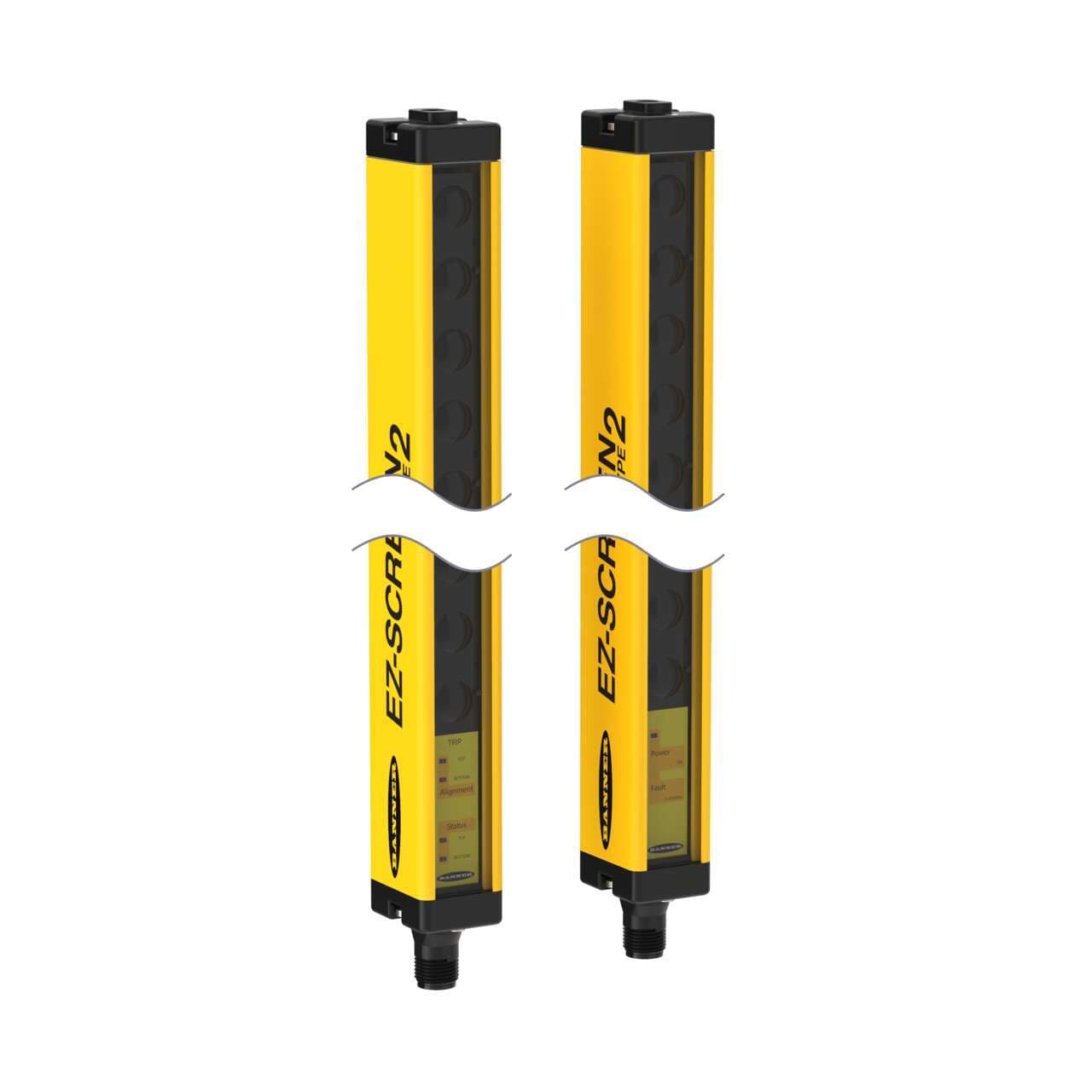

LS2HDVAP30-300Q88 Banner Safety Light Curtains

LS2HDVAP30-300Q88 on Powermatic Associates
Banner

Part#:LS2HDVAP30-300Q88

Alt. Part#:88640

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN TYPE 2 HEAVY DUTY V-series; TRIP Output; E/R Pair; 30 mm Resolution; 300 mm Defined Area; 4 m Range; Yellow Housing; 8-pin M12 Integral QD; Mounting Hardware Included

Product Details

  • Weight
    2358.6784 g
  • Country Of Origin
    US
  • Feature: ESD Safe
    No
  • Feature: Integral Muting
    No
  • Feature: End-to-End Sensing
    No
  • Test Input
    Yes
  • Trip/Latch Output
    Trip
  • Supply Current
    140 mA max.
  • Housing Material
    Aluminum; Zinc; Acrylic
  • OSSD Rating
    24 V dc at 0.5 A each
  • Fault Output
    No
  • Auxiliary Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter/Receiver Pair
  • Shock
    10g at 16ms (6000 cycles)
  • Electrical Safety Class
    III
  • Resolution (mm)
    30
  • Scan Code
    None
  • Reduced Resolution
    No
  • Short Protection
    Yes
  • SIL Rating
    SIL2; CL2
  • Response Time
    14
  • Recovery Time
    N/A
  • PL Rating
    N/A
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 20%
  • Operating Distance (m)
    0.2 - 4
  • Number of Pins (Receiver/Emitter)
    8
  • External Monitoring Device
    No
  • IP Rating
    IP65
  • Housing Finish
    Yellow Polyester
  • Fixed Blanking
    No
  • Safety Level
    Type 2
  • Heavy Duty
    Yes
  • Connector Type
    M12
  • Effective Aperture Angle
    Type 2 Per IEC 61496-2
  • Dimensions WxD (mm)
    33.7 x 34.8
  • Defined Area Height (mm)
    450
  • Overall Length (mm)
    515
  • Primary Housing Material
    Aluminum
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2HDVAP30-300Q88 on Powermatic Associates is $1,150.00. Order now.

About the product

Banner Engineering LS2HDVAP30-300Q88 is a safety light curtain within the Type 2 heavy-duty V-series light screens range. This product features a safety light screen/curtain emitter and receiver pair, designed for heavy-duty applications with a protective height of 300mm. The housing is yellow, made from aluminum with an acrylic lens and die-cast zinc end caps. It offers a beam spacing/pitch of 30mm and comes pre-equipped with an 8-pin Euro-style M12 connector. The supply voltage required is 24Vdc. The net dimensions are 365 mm in height, 34 mm in width, and 35 mm in depth. It operates within an ambient air temperature range of 0 to +55°C and has an IP65 degree of protection. The sensing distance ranges from 20cm to 4m. It includes 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a response time of 14ms / 0.014 s and a resolution of 30mm for hand detection.

LS2HDVAP30-300Q88 Related Documents

EZ-SCREEN HD TYPE 2, LS2HDE 300mm QD-1630951221879.stpEZ-SCREEN HD TYPE 2, LS2HDE 300mm QD-1630951221878.pdfEZ-SCREEN HD Type 2, LS2HDR 300mm QD-1630951221866.pdfEZ-SCREEN HD Type 2, LS2HDR 300mm QD-1630951221867.stp
