Part#:LS2HDTR30-150Q8

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

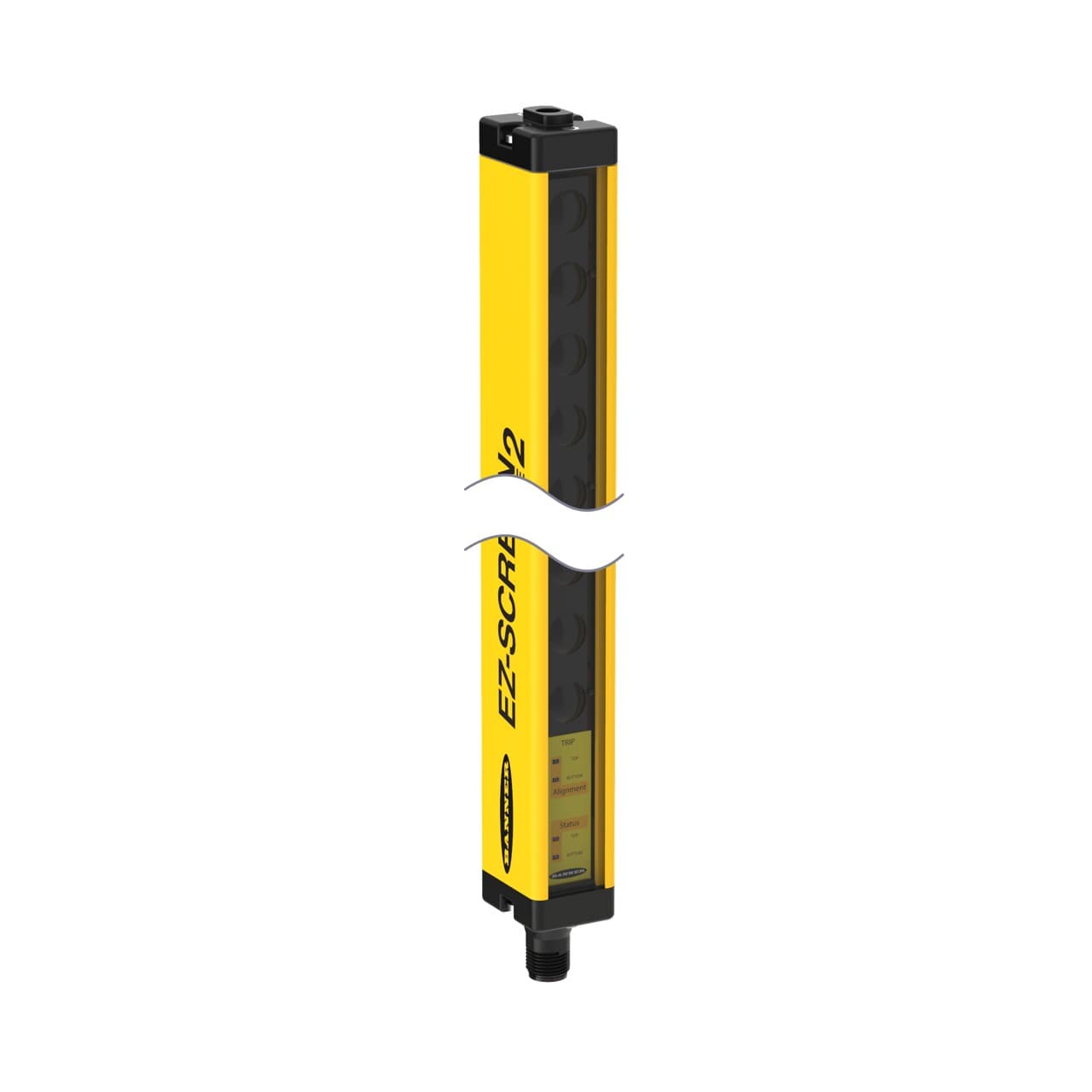

Banner Engineering LS2HDTR30-150Q8 is a safety light curtain designed for hand detection with a protective height of 150mm and a resolution of 30mm. This part of the LS2HD series type 2 light screens functions as a safety light screen/curtain receiver alone, featuring a trip output heavy-duty design. It has a yellow aluminum housing with an acrylic lens and die-cast zinc end caps. The device is pre-equipped with an 8-pin Euro-style M12 connector for connectivity and operates on a 24Vdc supply voltage. With dimensions of 215mm in height, 34mm in width, and 35mm in depth, it offers a sensing distance ranging from 20cm to 15m. The LS2HDTR30-150Q8 operates within an ambient air temperature range of 0 to +55°C and has an IP65 degree of protection. It includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and has a response time of 11ms.

Product Details

  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Feature: Integral Muting
    No
  • Trip/Latch Output
    Trip
  • Test Input
    Yes
  • Supply Current
    90 mA max.
  • OSSD Rating
    24 V dc at 0.5 A each
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Auxiliary Output
    No
  • Fault Output
    No
  • System Type
    Receiver
  • Vibration
    10-55 Hz at 0.35 mm
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    None
  • Electrical Safety Class
    III
  • Response Time
    11
  • SIL Rating
    SIL2; CL2
  • Reduced Resolution
    No
  • Resolution (mm)
    30
  • PL Rating
    N/A
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 20%
  • Operating Distance (m)
    0.2 - 15
  • Recovery Time
    N/A
  • Number of Pins (Receiver/Emitter)
    8
  • IP Rating
    IP65
  • Housing Finish
    Yellow Polyester
  • Fixed Blanking
    No
  • External Monitoring Device
    No
  • Safety Level
    Type 2
  • Effective Aperture Angle
    Type 2 Per IEC 61496-2
  • Connector Type
    M12
  • Overall Length (mm)
    215
  • Dimensions WxD (mm)
    33.7 x 34.8
  • Primary Housing Material
    Aluminum
  • Defined Area Height (mm)
    150
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
