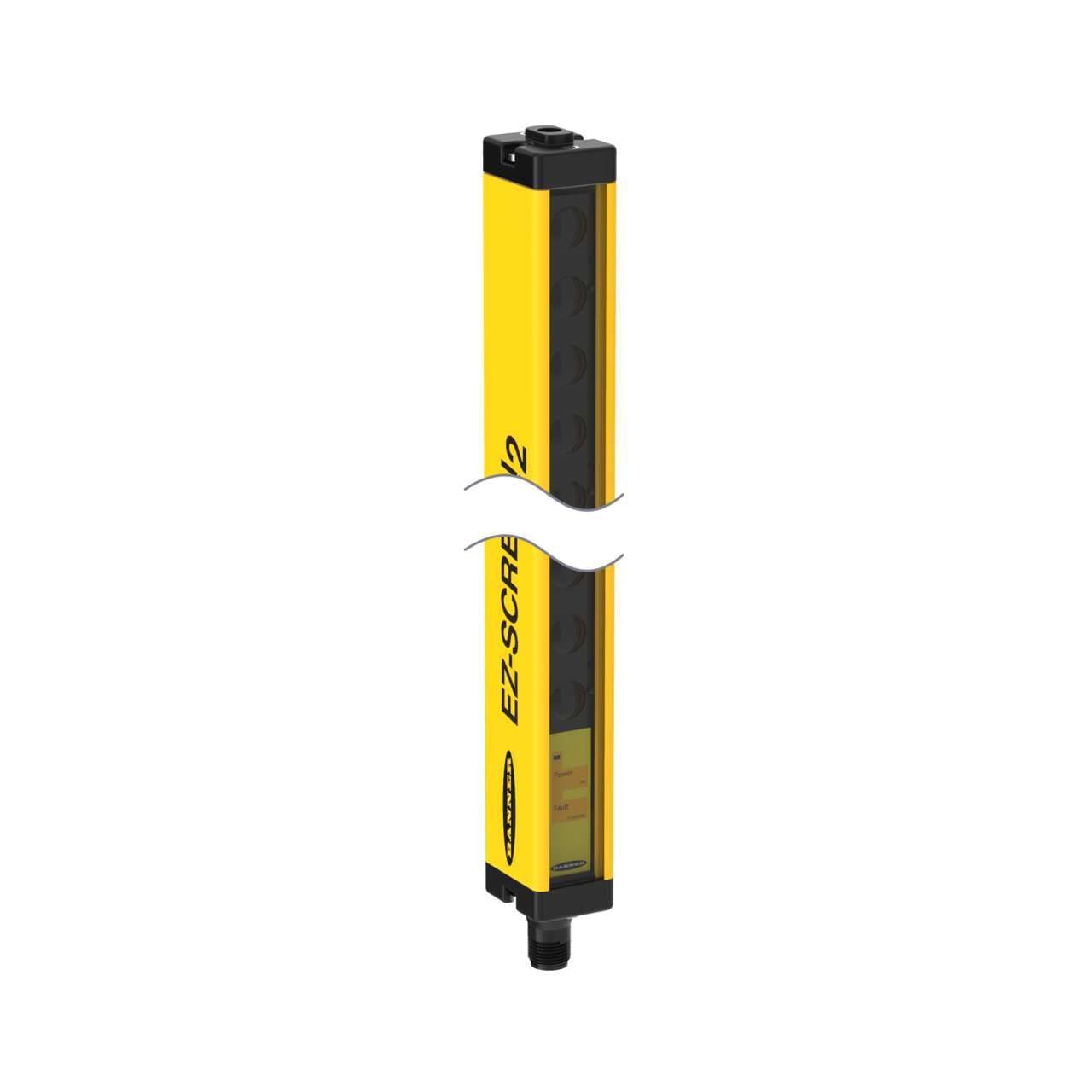

LS2HDE30-900Q8 Banner Safety Light Curtains

LS2HDE30-900Q8 on Powermatic Associates
Banner

Part#:LS2HDE30-900Q8

Alt. Part#:80856

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

LS2HDE30-900Q8 EZS T2 HD EMTR 30 mm x 900 mm TYPE2 HEAVY DUTY

Product Details

  • Weight
    0 g
  • Country Of Origin
    CN
  • Feature: End-to-End Sensing
    No
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Trip/Latch Output
    N/A
  • Vibration
    10-55 Hz at 0.35 mm
  • Supply Current
    50 mA max.
  • OSSD Rating
    N/A
  • Auxiliary Output
    No
  • Fault Output
    Yes
  • Housing Material
    Aluminum; Zinc; Acrylic
  • System Type
    Emitter
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    None
  • Electrical Safety Class
    III
  • SIL Rating
    SIL2; CL2
  • Response Time
    19
  • Reduced Resolution
    No
  • Recovery Time
    N/A
  • Resolution (mm)
    30
  • PL Rating
    N/A
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 20%
  • IP Rating
    IP65
  • Number of Pins (Receiver/Emitter)
    8
  • Housing Finish
    Yellow Polyester
  • Operating Distance (m)
    0.2 - 15
  • Fixed Blanking
    No
  • External Monitoring Device
    No
  • Safety Level
    Type 2
  • Effective Aperture Angle
    Type 2 Per IEC 61496-2
  • Overall Length (mm)
    964
  • Connector Type
    M12
  • Defined Area Height (mm)
    900
  • low-profile
    No
  • Dimensions WxD (mm)
    33.7 x 34.8
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2HDE30-900Q8 on Powermatic Associates is $1,083.00. Order now.

About the product

Banner Engineering LS2HDE30-900Q8 is a safety light curtain within the LS2HD series type 2 light screens, designed for hand detection with a protective height of 900mm and a resolution of 30mm. This emitter alone unit features infrared light with a wavelength of 850 nm and operates within an ambient air temperature range of 0 to +55°C. It is constructed with an aluminium housing, acrylic lens, and die-cast zinc end caps, all in a yellow color. The device offers a beam spacing/pitch of 30mm and is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. It operates on a 24Vdc supply voltage and includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) for trip output functionality. The LS2HDE30-900Q8 measures 964 mm in height, 34 mm in width, and 35 mm in depth, providing a sensing distance range from 20cm to 15m and a response time of 19ms. It is rated with an IP65 degree of protection, ensuring durability in various industrial environments.
