LS2HDLR30-1650Q8 Banner Safety Light Curtains

LS2HDLR30-1650Q8 on Powermatic Associates
Banner

Part#:LS2HDLR30-1650Q8

Alt. Part#:80873

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

LS2HDLR30-1650Q8 EZS T2 HD RCV LATCH 30 mm x 1650 mm TYPE2 HEAVY DUTY

Product Details

  • Weight
    0 g
  • Country Of Origin
    CN
  • Fault Output
    No
  • Auxiliary Output
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Short Protection
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • Shock
    10g at 16ms (6000 cycles)
  • System Type
    Receiver
  • Scan Code
    None
  • Feature: End-to-End Sensing
    No
  • Feature: ESD Safe
    No
  • Feature: Integral Muting
    No
  • Trip/Latch Output
    Latch
  • Test Input
    Yes
  • Supply Current
    90 mA max.
  • OSSD Rating
    24 V dc at 0.5 A each
  • Electrical Safety Class
    III
  • SIL Rating
    SIL2; CL2
  • Effective Aperture Angle
    Type 2 Per IEC 61496-2
  • Resolution (mm)
    30
  • Connector Type
    M12
  • Overall Length (mm)
    1733
  • Recovery Time
    N/A
  • Response Time
    27
  • PL Rating
    N/A
  • Reduced Resolution
    No
  • External Monitoring Device
    No
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 20%
  • Dimensions WxD (mm)
    33.7 x 34.8
  • Operating Distance (m)
    0.2 - 15
  • Fixed Blanking
    No
  • Number of Pins (Receiver/Emitter)
    8
  • IP Rating
    IP65
  • Safety Level
    Type 2
  • Housing Finish
    Yellow Polyester
  • low-profile
    No
  • Defined Area Height (mm)
    1650
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2HDLR30-1650Q8 on Powermatic Associates is $2,160.00. Order now.

About the product

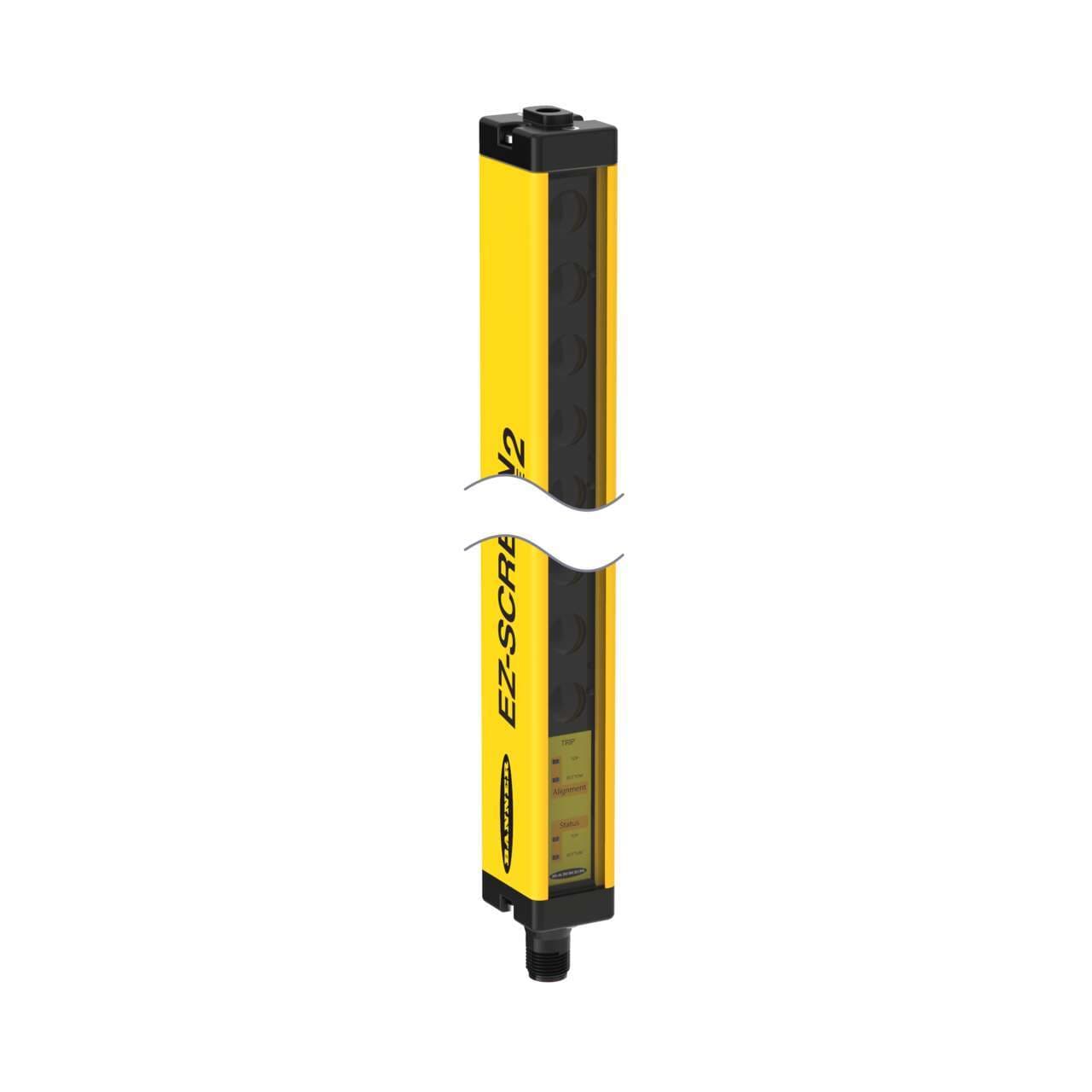

Banner Engineering LS2HDLR30-1650Q8 is a safety light curtain from the LS2HD series type 2 light screens designed for hand detection with a protective height of 1650mm. This receiver unit features a latch output heavy-duty design, housed in yellow aluminium with an acrylic lens and die-cast zinc end caps. It operates with a 30mm beam spacing/pitch and is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The device requires a 24Vdc supply voltage and offers a sensing distance ranging from 20cm to 15m. It is designed to operate within an ambient air temperature range of 0 to +55°C. The LS2HDLR30-1650Q8 measures 1713mm in height, 34mm in width, and 35mm in depth, ensuring a compact fit for various applications. It provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and boasts an IP65 degree of protection against dust and water ingress. With a response time of 27ms / 0.027 s and a resolution of 30mm for hand detection, this safety light curtain is tailored for safeguarding personnel in diverse industrial settings.

LS2HDLR30-1650Q8 Related Documents

LS2HD END BRACKET-1630955783324.stpEZ-SCREEN HD Type 2, LS2HDR 1650mm QD-1630955783330.pdfEZ-SCREEN HD Type 2, LS2HDR 1650mm QD-1630955783327.stp
