LS2HDTP30-1350Q88 Banner Electronic Components

LS2HDTP30-1350Q88 on Powermatic Associates
Banner

Part#:LS2HDTP30-1350Q88

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

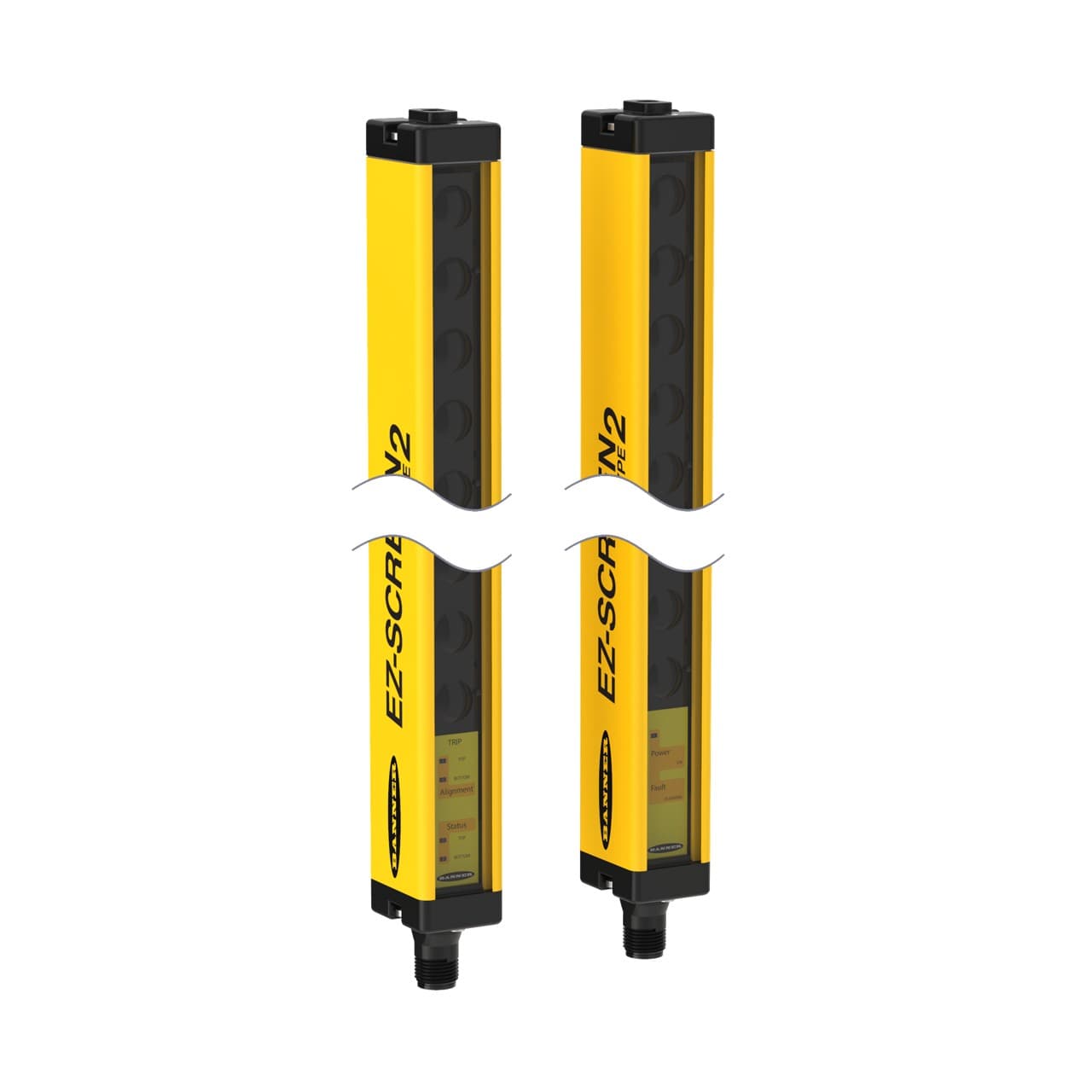

EZ-SCREEN TYPE 2 HEAVY DUTY, TRIP Output, E/R Pair, 30mm Resolution, 1350mm Defined Area, 15m Range, Yellow Housing, Integral M12 8-Pin QD Connection, Mounting Hardware Included

Product Details

  • Test Input
    Yes
  • Feature: ESD Safe
    No
  • Feature: Integral Muting
    No
  • Feature: End-to-End Sensing
    No
  • Trip/Latch Output
    Trip
  • Supply Current
    140 mA max.
  • OSSD Rating
    24 V dc at 0.5 A each
  • Fault Output
    No
  • Auxiliary Output
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter/Receiver Pair
  • Short Protection
    Yes
  • Scan Code
    None
  • Electrical Safety Class
    III
  • Shock
    10g at 16ms (6000 cycles)
  • Reduced Resolution
    No
  • SIL Rating
    SIL2; CL2
  • Response Time
    24
  • Recovery Time
    N/A
  • Operating Voltage
    24 V dc +/- 20%
  • Resolution (mm)
    30
  • PL Rating
    N/A
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Distance (m)
    0.2 - 15
  • Number of Pins (Receiver/Emitter)
    8
  • IP Rating
    IP65
  • Housing Finish
    Yellow Polyester
  • Fixed Blanking
    No
  • External Monitoring Device
    No
  • Defined Area Height (mm)
    1350
  • Overall Length (mm)
    1414
  • Dimensions WxD (mm)
    33.7 x 34.8
  • low-profile
    No
  • Effective Aperture Angle
    Type 2 Per IEC 61496-2
  • Heavy Duty
    Yes
  • Primary Housing Material
    Aluminum
  • Connector Type
    M12
  • Safety Level
    Type 2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LS2HDTP30-1350Q88 Related Documents

EZ-SCREEN HD TYPE 2, LS2HDE 1350mm QD-1630951522339.pdfLS2HD END BRACKET-1630951522340.stpEZ-SCREEN HD Type 2, LS2HDR 1350mm QD-1630951522341.pdfEZ-SCREEN HD TYPE 2, LS2HDE 1350mm QD-1630951522337.stpEZ-SCREEN HD Type 2, LS2HDR 1350mm QD-1630951522343.stp
