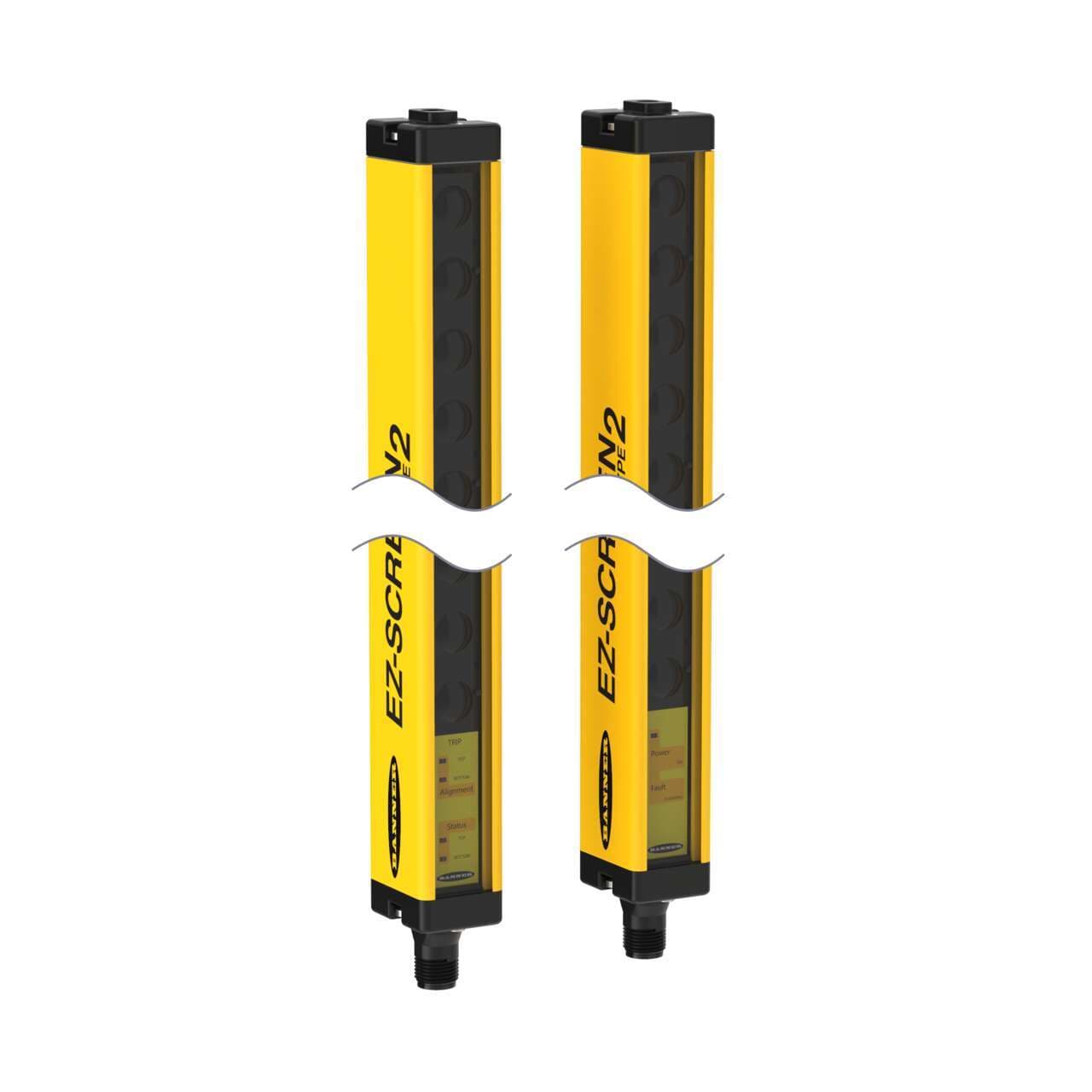

LS2HDTP30-600Q88 Banner Safety Light Curtains

LS2HDTP30-600Q88 on Powermatic Associates
Banner

Part#:LS2HDTP30-600Q88

Alt. Part#:80902

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN TYPE 2 HEAVY DUTY; TRIP Output; E/R Pair; 30 mm Resolution; 600 mm Defined Area; 15 m Range; Yellow Housing; 8-pin M12 Integral QD; Mounting Hardware Included

Product Details

  • Weight
    4581.2792 g
  • Country Of Origin
    CN
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Test Input
    Yes
  • Trip/Latch Output
    Trip
  • Supply Current
    140 mA max.
  • OSSD Rating
    24 V dc at 0.5 A each
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Auxiliary Output
    No
  • Fault Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter/Receiver Pair
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • SIL Rating
    SIL2; CL2
  • Reduced Resolution
    No
  • Scan Code
    None
  • Response Time
    16
  • Resolution (mm)
    30
  • Electrical Safety Class
    III
  • Operating Voltage
    24 V dc +/- 20%
  • Recovery Time
    N/A
  • Number of Pins (Receiver/Emitter)
    8
  • PL Rating
    N/A
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • External Monitoring Device
    No
  • Operating Distance (m)
    0.2 - 15
  • IP Rating
    IP65
  • Housing Finish
    Yellow Polyester
  • Fixed Blanking
    No
  • Dimensions WxD (mm)
    33.7 x 34.8
  • Overall Length (mm)
    665
  • Connector Type
    M12
  • Defined Area Height (mm)
    600
  • Heavy Duty
    Yes
  • Safety Level
    Type 2
  • low-profile
    No
  • Primary Housing Material
    Aluminum
  • Effective Aperture Angle
    Type 2 Per IEC 61496-2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2HDTP30-600Q88 on Powermatic Associates is $1,713.00. Order now.

About the product

Banner Engineering LS2HDTP30-600Q88 is a safety light curtain within the LS2HD series type 2 light screens, designed for hand detection with a resolution of 30mm. This unit features a yellow aluminum housing with acrylic lens and die-cast zinc end caps, ensuring durability. It has a protective height of 600mm and is equipped with a pre-equipped 8-pin Euro-style M12 connector for connectivity. The device operates on a 24Vdc supply voltage and offers a sensing distance ranging from 20cm to 15m. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and has a response time of 16ms. The LS2HDTP30-600Q88 operates within an ambient air temperature range of 0 to +55°C and boasts an IP65 degree of protection, making it suitable for various industrial environments. The dimensions are 665mm in height, 34mm in width, and 35mm in depth, with a beam spacing/pitch of 30mm.
