DEE8-51D Banner Cordsets

DEE8-51D on Powermatic Associates
Banner

Part#:DEE8-51D

Manufacturer:Banner

Alt. Part#:10593

Product Lifecycle:Active

Get a quick Quote!

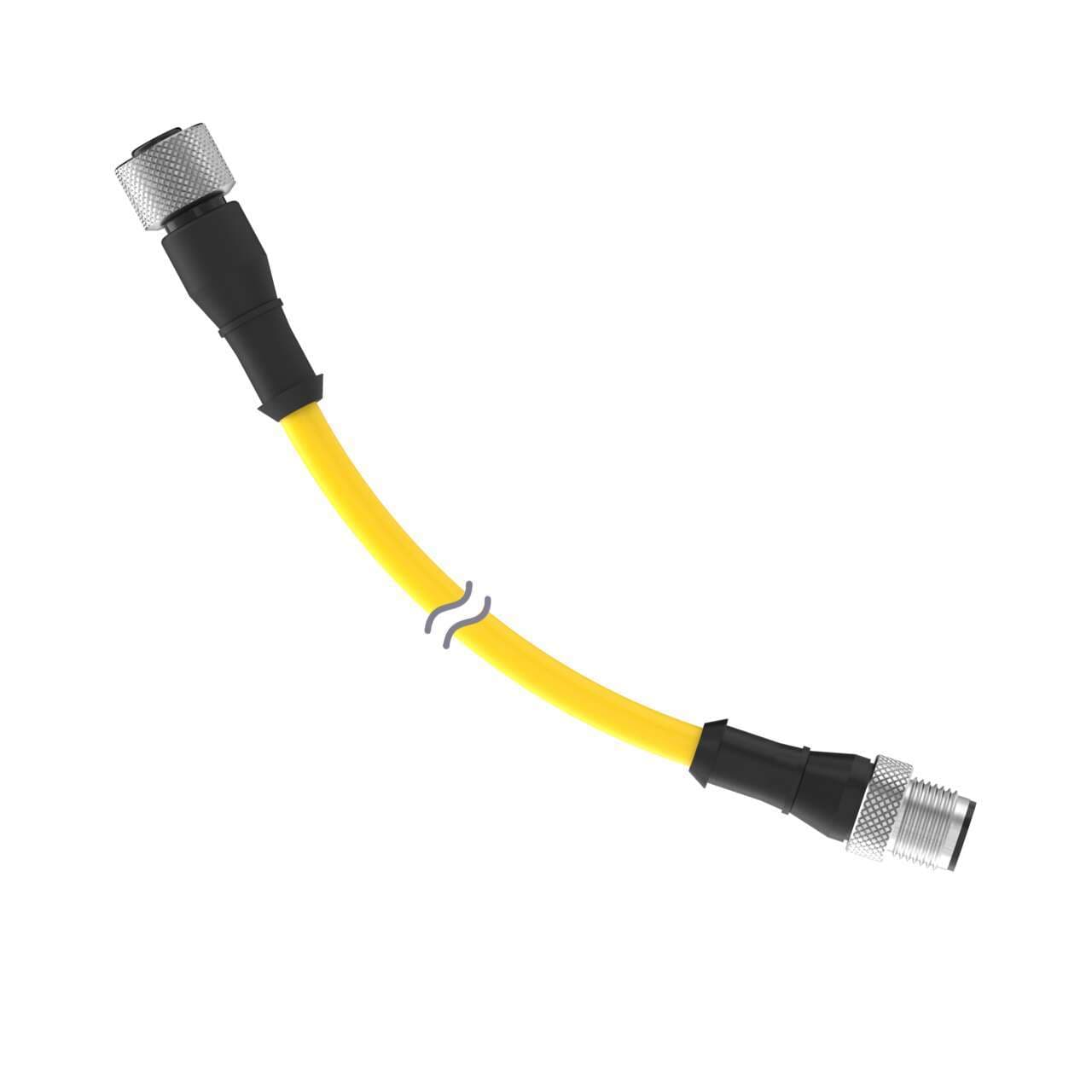

Cordset: Double Ended M12; 11-pin Straight Male; 11-pin Straight Male; 0.3 m 12x24 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DEE8-51D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    29.48348 g
  • Country Of Origin
    TW
  • Primary AWG
    22
  • Cable Jacket Color
    Yellow
  • Oil/Grease Resistant
    No
  • Secondary Orientation
    Straight
  • Secondary Number of Conductors
    5
  • Secondary AWG
    22
  • Feature: Hazardous Area
    No
  • Number of Connectors
    2
  • Secondary Connector Type
    EURO
  • Secondary Gender
    Male
  • Secondary Coupling Method
    M12 Single Key
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Coupling Material/Color
    Nickel Plated Brass
  • Primary Connector Type
    EURO
  • Primary Gender
    Female
  • Primary Number of Conductors
    8
  • Primary Orientation
    Straight
  • Primary Coupling Method
    M12 Single Key
  • Connector Body Material/Color
    PUR Black
  • Outside Cable Diameter (mm)
    5.5
  • Minimum Temp. (°C)
    -40
  • IP Rating
    IP68
  • Cable Jacket Material
    PVC
  • Current Rating (A)
    2.0
  • Maximum Temp. (°C)
    105
  • Number of Contacts
    8
  • Shield/No Shield
    No Shield
  • Trunk Length (m)
    No Trunk
  • Cordset Length (m)
    0.3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DEE8-51D Description

Banner Engineering DEE8-51D is a pre-assembled, double-ended cable designed for automation applications, featuring an 8-pin Euro-style M12 female connector and a 5-pin Euro-style M12 male connector. Constructed from PVC cable with yellow sheathing, it has a diameter of 5.5mm and a length of 30cm. This cable operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68. It is rated for a voltage of 60Vac and 75Vdc.
