DEE8CSS1B-51D Banner Cordsets
Part#:DEE8CSS1B-51D
Manufacturer:Banner
Alt. Part#:91247
Product Lifecycle:Active
Get a quick Quote!

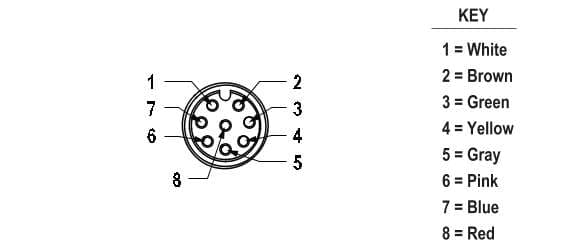

Cordset: Double Ended M12; 8-pin Straight Female; 5-pin Straight Male; 0.3 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DEE8CSS1B-51D Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 31.75144 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Secondary Orientation Straight
- Primary AWG 22
- Secondary Number of Conductors 5
- Primary Number of Conductors 8
- Secondary Connector Type EURO
- Secondary Gender Male
- Secondary Coupling Method M12 Single Key
- Secondary AWG 22
- Primary Coupling Method M12 Single Key
- Primary Gender Female
- Primary Orientation Straight
- Current Rating (A) 2.0
- Voltage Rating (V) 60 V ac/75 V dc
- Minimum Temp. (°C) -40
- Maximum Temp. (°C) 105
- Primary Connector Type EURO
- IP Rating IP68
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield No Shield
- Outside Cable Diameter (mm) 5.5
- Connector Body Material/Color PUR Black
- Number of Contacts 8
- Trunk Length (m) No Trunk
- Cordset Length (m) 0.3
- Cable Jacket Color Yellow
- Cable Jacket Material PVC
- Number of Connectors 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
DEE8CSS1B-51D Description
Banner Engineering DEE8CSS1B-51D is a pre-assembled, double-ended cable designed for various automation applications. It features an 8-pin Euro-style M12 female connector on one end and a 5-pin Euro-style M12 male connector on the other. The cable is made from PVC, ensuring durability within ambient air temperatures ranging from -40 to +105°C. It offers a degree of protection rated at IP68, suitable for environments requiring dust and moisture resistance. The cable has a diameter of 5.5mm and a length of 30.5cm. Its sheathing is colored yellow for easy identification. This part is rated for a voltage of 60Vac and 75Vdc, accommodating a wide range of power supply requirements.
