250-716 WAGO Terminal Blocks

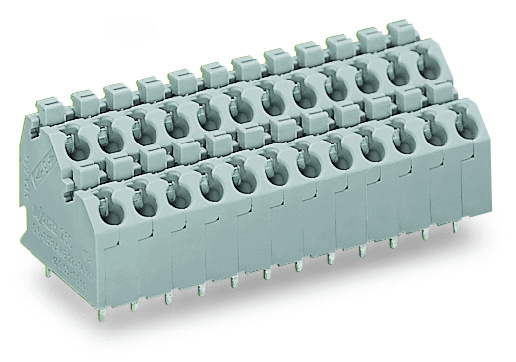

WAGO 250-716 is an automation part with a short circuit breaking rating and electrical data ratings per IEC/EN 60664-1, including a nominal voltage (III/3) of 320V, rated impulse voltage (III/3) of 4kV, rated voltage (III/2) of 320V, rated impulse voltage (III/2) of 4kV, nominal voltage (II/2) of 630V, rated surge voltage (II/2) of 4kV, and a rated current of 10A. It has UL 1059 approval with rated voltages of 300V and rated currents of 10A for both Use Group B and D, as well as CSA approval with similar ratings. The part features 32 connection points, a total of 32 potentials, one connection type, two levels, and utilizes Push-in CAGE CLAMP technology with push-button actuation. It accommodates solid conductors of 0.5...1.5mm2 / 20...16 AWG, fine-stranded conductors of 0.75...1.5mm2, and fine-stranded conductors with both insulated and uninsulated ferrules ranging from 0.5...1mm2. The strip length is 9...10mm / 0.35...0.39", with a conductor connection direction to PCB of 45° and a pole number of 32. Physically, it has a pin spacing of 5mm / 0.197", width of 81.2mm / 3.197", height of 24.9mm / 0.98", depth of 21.7mm / 0.854", and solder pin length of 4mm. The material is polyamide (PA66) in agate gray, with a flammability class per UL94 of V0, and it uses chrome-nickel spring steel (CrNi) for the clamping spring and electrolytic copper (ECu) with tin plating for contacts. It operates within a temperature range of -60...+105°C, is RoHS compliant without exemption, and comes in a box packaging of 36 pieces per unit. The product is manufactured in Switzerland, with a GTIN of 4044918301046 and a customs tariff number of 85369010000.
