787-2861/400-000 WAGO AC/DC Power Supplies

Name: 787-2861/400-000
Brand: WAGO
Price: 57.74 USD
Availability: InStock

787-2861/400-000 on Powermatic Associates

Part#:787-2861/400-000

Manufacturer:WAGO

Product Lifecycle:Active

In-stock parts: 1

Nov 16, 2024

Electronic circuit breaker; 1-channel; 24 VDC; 4 A

About the manufacturer: WAGO is one of the manufacturers that offers AC/DC Power Supplies that you can order at Powermatic Associates site. WAGO is the global leader in spring clamp technology for electrical connections and ranks among the top suppliers of components for industrial and building automation. With 28 companies and 9 production facilities employing around 9,000 people worldwide, we ensure expert advice and close customer relationships.

Check out the 787-2861/400-000 WAGO price in the box on the right side or send a quick quote.

Product Details

Weight
37.50000986 g
Country Of Origin
Germany
HTS Code
85363010900

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

787-2861/400-000 Description

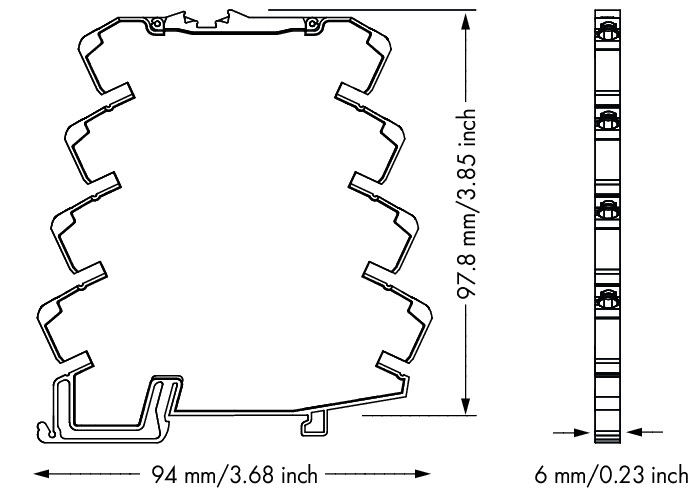

Wago 787-2861/400-000 is a 1-channel plug-in Electronic Circuit Breaker (ECB) designed for protection unit applications. It features remote input functionality with an 18-30Vdc signal that switches the channel ON/OFF and resets it. The supply voltage requirement for this part is 18-30Vdc, with a nominal voltage of 24Vdc, and it utilizes push-in CAGE-CLAMP spring connections for connectivity. This part is rated for a current of 4A and a voltage of 24Vdc. It does not operate with an AC supply voltage. The ambient air temperature for operation ranges from -25°C to +70°C, while the storage temperature tolerance extends from -40°C to +85°C. The degree of protection offered is IP20, and it includes a T 15A internal fuse per channel for added safety. A suppressor diode (33V) is also incorporated for transient suppression on the primary side. The part is designed for mounting on a DIN-35 rail, with dimensions of H97.8mm x W6mm x D94mm. It can operate within 10-95% relative humidity, with no condensation permissible.

This item can ship within 24h!

Manufacturer warranty

$57.74

Stock:

Select Qty:

$57.74

$57.74 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Relevant products

750-8217

Verified stock: 0

Wago 750-8217 is a Programmable Logic Controller (PLC) CPU unit featuring DHCP, DNS, NTP, FTP, FTPS, SNMP, HTTP, HTTPS, and SSH functionalities. It operates on a supply voltage of 18-31.2Vdc via wiring with a nominal 24Vdc and includes connection options such as 2 x RJ45 connectors for fieldbus, a 9-pin D-sub connector for serial port communications, and cage-clamp connections for both 2-pin system and 6-pin field configurations. This unit is designed with a mobile radio module, supports an ambient air temperature range for operation from C to +55°C, and for storage from C to +85°C. It offers communication speeds of 10Mbit/s and 100Mbit/s, adheres to an IP20 degree of protection, and supports various communication protocols including Modbus RTU, Modbus TCP, Ethernet/IP, GSM, UMTS, LTE (4G), RS-232, and RS-485. The unit's dimensions are H100mm x W102.5mm x D71.9mm, housed in a polycarbonate (PC) / Polyamide (PA) 6.6 casing, and can manage up to 250 connections per node and 64 field devices. It features a 512MB RAM, 4GB internal flash memory, 128kB non-volatile memory for software, 32MB for program memory, 128MB for data memory, and another 128kB non-volatile memory for hardware. The PFC200 series CPU unit is designed for shock resistance according to EN 60068-2-27 --15g, consumes 550mA at nominal load and 700mA for system supply, and supports programming languages such as Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), and Sequential Function Chart (SFC) within the e!COCKPIT programming environment. It operates under a Real-time Linux system with an RT-Preempt patch, includes an SD and SDHC card slot supporting up to 32GB, and is powered by a Cortex A8 1GHz processor.

WAGO

787-722

Verified stock: 5

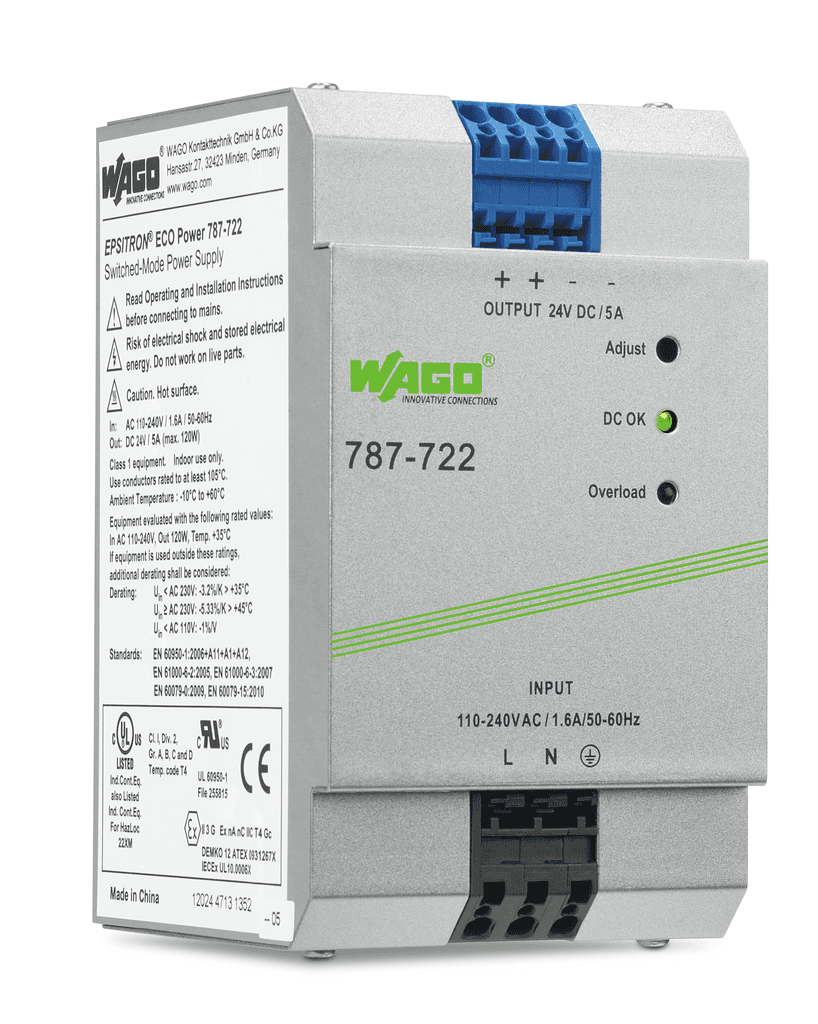

WAGO 787-722 - Switched-mode power supply; EPSITRON® ECO Power; 1-phase; 24 VDC output voltage; 5 A output current; 4,00 mm²
