PSW 3M-2 Turck Cordsets

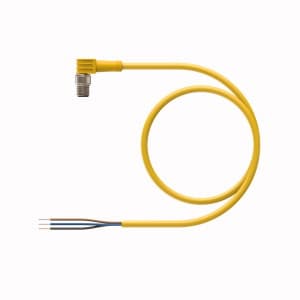

Turck PSW 3M-2 PSW 3M-2 Actuator and Sensor Cordset, Connection Cable
Turck

Part#:PSW 3M-2

Manufacturer:Turck

Alt. Part#:U0136-4

Product Lifecycle:Active

In-stock parts: 1

Sep 28, 2024

PSW 3M-2 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PSW 3M-2 Turck price in the box on the right side or send a quick quote.

Product Details

  • Approvals
    UL Listed, CSA, CE, RoHS
  • Cable Jacket Color
    Yellow
  • Cable length (L)
    2.0  m
  • Number of Conductors
    3
  • Connector A - Style
    Right angle, Male
  • Current
    4 A
  • Cable Jacket Material
    PVC
  • Connector A - Number of Pins
    3
  • Voltage
    125 V
  • Connector A
    M8 × 1
  • Material coupling/housing A
    Brass
  • Application
    Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PSW 3M-2 Description

Turck PSW 3M-2 is a double-ended cable/cordset featuring a 4.4mm cable sheath outer diameter and a rated current of 4A. It is equipped with a right-angled 3-pin M8 picofast male connector and a straight 3-pin M8 picofast male connector, both with an M8x1 threaded coupling nut, falling under the sub-range name of M8 picofast male straight to M8 picofast male 90° angled. This part offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. The connectors are made from nickel-plated brass with a PVC jacket over the cable, which is yellow. The cable has a length of 2 meters (approximately 6 feet), operates at a rated voltage of 125Vac, and has a cross-section of 3 x #24AWG.

Related documents PSW 3M-2 Specs

PSW 3M-2 edb_U0136-4_eng_us.pdf
