PKG 4M-2 Turck Cordsets

PKG 4M-2 on Powermatic Associates
Turck
  • PKG 4M-2
  • PKG 4M-2

Part#:PKG 4M-2

Alt. Part#:U2503-14

Manufacturer:Turck

Category:Cordsets

Product Lifecycle:Active

1,314 in stock

Apr 1, 2025

Product description

PKG 4M-2 Turck - PKG 4M-2 Actuator and Sensor Cordset, Connection Cable

Product Details

  • Type
    Cordsets
  • Weight
    56 g
  • Gauge
    26 AWG
  • Number of conductors
    4
  • RoHS
    Yes
  • Series
    M8 picofast
  • Cable Length
    2 m
  • Country Of Origin
    MEX
  • HTS Code
    8544429090
  • Connector 1 - Configuration
    Straight
  • Connector 1 - Type
    Female Connector
  • Connector 1 - Size
    M8
  • Connector 2 - Configuration
    Flying Leads
  • Connector 1 - Pins
    4
  • Weight
    56.019 grams
  • Voltage
    125 volts
  • Length
    2.0 meters
  • Country of Origin
    Mexico
  • Cable Jacket Color
    Yellow
  • Approvals
    UL Listed, CSA, CE, RoHS
  • Connector A
    M8 × 1
  • Cable length (L)
    2.0  m
  • Cable Jacket Material
    PVC
  • Current
    2 amperes
  • Number of Conductors
    4
  • Material coupling/housing A
    Brass
  • Connector A - Style
    Straight, Female
  • Connector A - Number of Pins
    4
  • Application
    Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PKG 4M-2 on Powermatic Associates is $18.30. Order now.

About the product

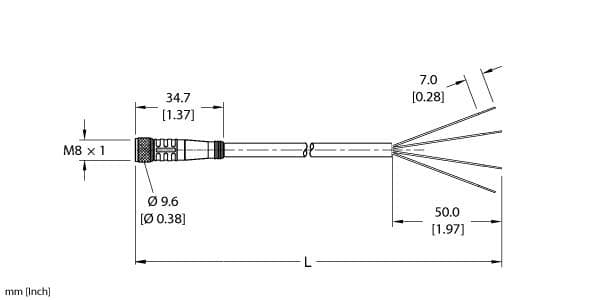

Actuator and Sensor Cordset, Connection Cable, Cable length (L) 2 m, M8, Female, Straight, 4-pin, Threaded Connector, General Purpose Cable, Yellow PVC jacket, 4X26 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Cable length: 2 m
