Part#:RE22R2MYMR

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

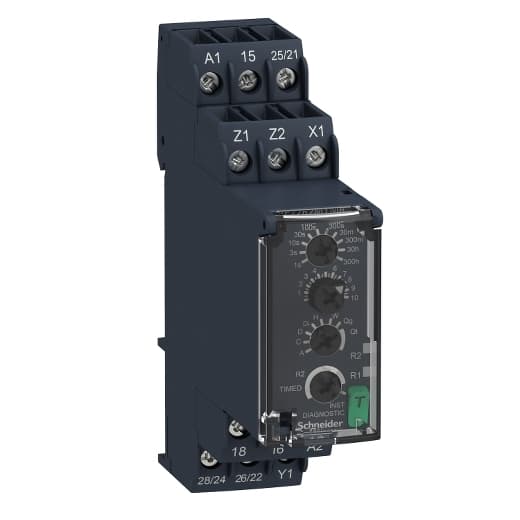

Schneider Electric RE22R2MYMR is an analog timer featuring a modular design of 18mm / 1module and offers a wide range of functions including A, At, Aw, C, D, Di, H, Ht, Qg, Qt, W, Ct, Dw, Hw, Wt, Dt, Dit, Diw, Qgt, Qtt, Qgw, Qtw. It is controlled via a rotary knob, a diagnostic button, and an external potentiometer. The control signal pulse width is 100ms with a load in parallel and 30ms without, with a recovery time of 120ms upon de-energisation and a power-on delay of 100ms. Designed for DIN rail mounting, it has a rated current of 8 A and falls under the RE22 sub-range. The degree of protection is IP40 for the housing, IP20 for the terminals, and IP50 for the front panel, with the housing material being self-extinguishing. Power consumption at 240Vdc is 1.5 W, and it features DPDT (Double Pole Double Throw) - 2C/O contacts. The rated impulse voltage (Uimp) is 5 kV, and it operates on a supply voltage of 24-240 V AC/DC, with a minimum of 20.4 V. The display includes a green LED backlight for dial pointer indication, and yellow LEDs for various timing and relay status indications. Its electrical durability is rated at 100,000 operations at 250vac/24Vdc and 10,000,000 operations. The time delay range is 1s - 300h / 1 - 1,080,000 s, with an operational temperature range of -20°C to +60°C.

Product Details

  • Time Delay Range
    3...30 min 30...300 min 0.3...3 s 3...30 h 10...100 s 1...10 s 0.05...1 s 30...300 s 30...300 h 3...30 s
  • Time Delay Type
    Power on-delay Off-delay Symmetrical flashing Interval Star-delta
  • Status LED
    Green LED backlight steady)dial pointer indication Yellow LED steady)output relay energised Yellow LED fast flashing)timing in progress and output relay de-energised Yellow LED slow flashing)timing in progress and output relay energised
  • Connections - Terminals
    Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
  • Control Type
    Rotary knob Diagnostic button Potentiometer external
  • Electrical Durability
    100000 cycles, 8 A at 250 V, AC-1 100000 cycles, 2 A at 24 V, DC-1
  • Contacts Type And Composition
    1 C/O timed or instantaneous contact, cadmium free 2 C/O timed contact, cadmium free
  • Control Signal Pulse Width
    100 ms with load in parallel 30 ms
  • Safety Reliability Data
    B10d = 160000 MTTFd = 171.2 years
  • Net Weight
    0.23 lb(US) (0.105 kg)
  • Power On Delay
    100 ms
  • Mechanical Durability
    10000000 cycles
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Overvoltage Category
    III IEC 60664-1
  • Maximum Switching Current
    8 A
  • Switching Capacity In VA
    2000 VA
  • Temperature Drift
    +/- 0.05 %/°C
  • Device Short Name
    RE22
  • Mounting Position
    Any position
  • Creepage Distance
    4 kV/3 IEC 60664-1
  • Width
    0.89 in (22.5 mm)
  • Rated Impulse Withstand Voltage
    5 kV 1.2…50 µs IEC 60664-1
  • Maximum Switching Voltage
    250 V AC
  • Minimum Switching Current
    10 mA 5 V DC
  • Power Consumption In W
    1.5 W 240 V DC
  • Power Consumption In VA
    3 VA 240 V AC
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Recovery Time
    120 ms on de-energisation
  • Immunity To Microbreaks
    10 ms
  • Voltage Drift
    +/- 0.2 %/V
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Voltage Range
    0.85...1.1 Us
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Housing Material
    Self-extinguishing
  • Release Input Voltage
    <= 2.4 V
  • [Us] Rated Supply Voltage
    24...240 V AC/DC 50/60 Hz
  • Discrete Output Type
    Relay
  • Range Of Product
    Harmony Timer Relays
  • Product Or Component Type
    Multifunction relay
  • Nominal Output Current
    8 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
