RE22R2MMW Schneider Electric Industrial Automation Components

RE22R2MMW on Powermatic Associates
Schneider Electric

Part#:RE22R2MMW

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

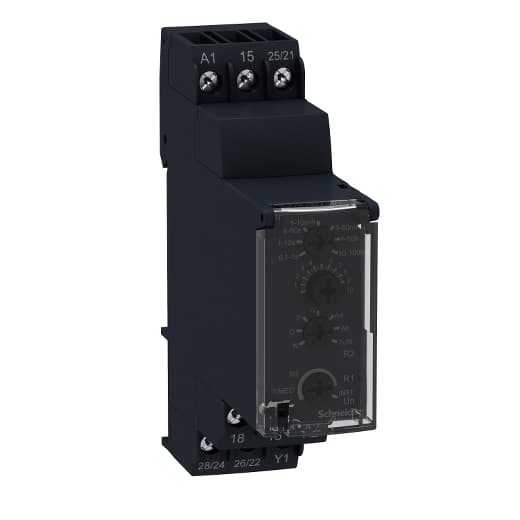

Schneider Electric RE22R2MMW is an analog timer featuring a modular design of 18mm / 1module with multiple functions including A, Ac, At, B, Bw, C, D, Di, H, Ht. It is controlled via a front panel rotary knob, with a control signal pulse width of 100ms under load and 30ms, and a recovery time of 120ms on de-energization. The power-on delay is set at 100ms. Designed for DIN rail mounting, it has a rated current of 8 A and falls under the RE22 sub-range. The degree of protection is IP40 for both the front face and housing, while the terminal block is rated at IP20. The housing material is self-extinguishing, and it consumes 1.5 W at 240Vdc. It features DPDT (Double Pole Double Throw) - 2C/O contacts, with a rated impulse voltage (Uimp) of 5 kV. The supply voltage ranges from 12-240 V, with a minimum of 20.4 V. Display indicators include a green LED for timing in progress and power ON, and a yellow LED for relay energized. Its electrical durability is rated at 100,000 operations for 250Vac resistive load and 10,000,000 operations. The time delay range is 0.1s - 100h or 0.1 - 360,000 s. It operates within a temperature range of -20°C to +60°C.

Product Details

  • Time Delay Range
    0.1...1 s 6...60 s 1...10 h 1...10 min 1...10 s 10...100 h 6...60 min
  • Time Delay Type
    Power on-delay On-delay and off-delay Interval Off-delay Symmetrical flashing
  • Status LED
    Green LED flashing)timing in progress Green LED steady)power ON Yellow LEDrelay energised
  • Connections - Terminals
    Screw terminals, 2 x 1.5 mm² with cable end Screw terminals, 2 x 2.5 mm² without cable end
  • Safety Reliability Data
    B10d = 230000 MTTFd = 251.1 years
  • Control Signal Pulse Width
    30 ms 100 ms under load
  • Rated Impulse Withstand Voltage
    5 kV 1.2…50 µs IEC 60664-1 5 kV IEC 61812-1
  • Contacts Type And Composition
    1 C/O timed contact 1 C/O timed or instantaneous contact
  • Net Weight
    0.21 lb(US) (0.093 kg)
  • Width
    0.89 in (22.5 mm)
  • Electrical Durability
    100000 cycles for resistive load, 8 A at 250 V, AC
  • Maximum Switching Voltage
    250 V
  • Maximum Switching Current
    8 mA
  • Power Consumption In W
    1.5 W 240 V DC
  • Mounting Position
    Any position in relation to normal vertical mounting plane
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Power On Delay
    100 ms
  • Breaking Capacity
    2000 VA
  • Minimum Switching Current
    10 mA 5 V
  • Mechanical Durability
    10000000 cycles
  • Immunity To Microbreaks
    10 ms
  • Recovery Time
    120 ms on de-energisation
  • Power Consumption In VA
    3 VA 240 V AC
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Voltage Drift
    +/- 0.2 %/V
  • Housing Material
    Self-extinguishing
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Temperature Drift
    +/- 0.05 %/°C
  • Control Type
    Rotary knob front panel
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Voltage Range
    0.85...1.1 Us
  • [Us] Rated Supply Voltage
    12...240 V AC/DC
  • Nominal Output Current
    8 A
  • Device Short Name
    RE22
  • Discrete Output Type
    Relay
  • Range Of Product
    Harmony Timer Relays
  • Product Or Component Type
    Multifunction relay

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RE22R2MMW on Powermatic Associates is $73.54. Order now.
