RE22R2MXMU Schneider Electric Industrial Automation Components

RE22R2MXMU on Powermatic Associates
Schneider Electric

Part#:RE22R2MXMU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

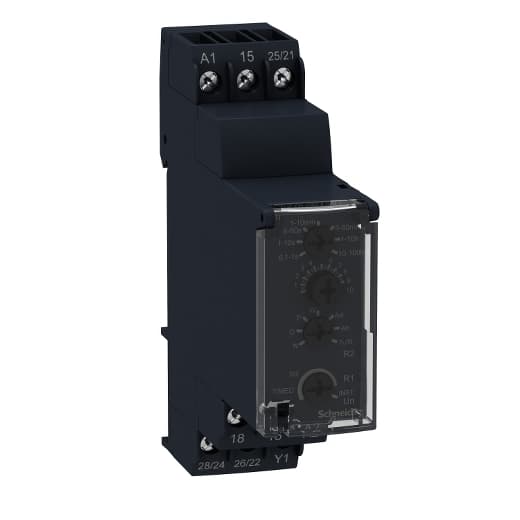

Schneider Electric RE22R2MXMU is an analog timer featuring a modular design of 18mm / 1module and offers multiple functions including Ad, Ah, N, O, P, Pt, Tl, Tt, and W. It is controlled via a front panel rotary knob with a control signal pulse width of 100ms under load and 30ms, alongside a recovery time of 120ms on de-energisation and a power-on delay of 100ms. Designed for DIN rail mounting, this timer has a rated current of 8 A and falls under the RE22 sub-range. It offers a degree of protection of IP40 for the housing, IP20 for the terminal block, and IP50 for the front face. The housing is made from self-extinguishing material. With a power consumption of 0.7 W at 24Vdc, it features DPDT (Double Pole Double Throw) - 2C/O contacts type, a rated impulse voltage of 5 kV, and a supply voltage range of 24-240 V AC and 24 V DC (Minimum 20.4 V). The display includes a green LED for timing in progress and power ON indication, and a yellow LED for relay energisation. It has 2 NC (Normally Closed) circuits, offers electrical durability of 100,000 operations at 250Vac with a resistive load and up to 10,000,000 operations. The time delay range is 0.1s - 100h / 0.1 - 360,000 s, and it operates within a temperature range of -20°C to +60°C.

Product Details

  • Time Delay Range
    0.1...1 s 1...10 h 1...10 s 6...60 min 10...100 h 6...60 s 1...10 min
  • Time Delay Type
    Pulse delay Safe-guard Bistable Interval
  • Status LED
    Green LED flashing)timing in progress Green LED steady)power ON Yellow LEDrelay energised
  • Rated Impulse Withstand Voltage
    5 kV 1.2…50 µs IEC 60664-1 5 kV IEC 61812-1
  • Connections - Terminals
    Screw terminals, 2 x 1.5 mm² with cable end Screw terminals, 2 x 2.5 mm² without cable end
  • Contacts Type And Composition
    1 C/O timed contact 1 C/O timed or instantaneous contact
  • Safety Reliability Data
    B10d = 170000 MTTFd = 182.6 years
  • Control Signal Pulse Width
    30 ms 100 ms under load
  • [Us] Rated Supply Voltage
    24...240 V AC 24 V DC
  • Net Weight
    0.20 lb(US) (0.09 kg)
  • Mounting Position
    Any position in relation to normal vertical mounting plane
  • Width
    0.89 in (22.5 mm)
  • Electrical Durability
    100000 cycles for resistive load, 8 A at 250 V, AC
  • Power On Delay
    100 ms
  • Power Consumption In VA
    50 VA 240 V AC
  • Maximum Switching Current
    8 mA
  • Recovery Time
    120 ms on de-energisation
  • Power Consumption In W
    0.7 W 24 V DC
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Discrete Output Type
    Relay
  • Housing Material
    Self-extinguishing
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Mechanical Durability
    10000000 cycles
  • Maximum Switching Voltage
    250 V
  • Minimum Switching Current
    10 mA 5 V
  • Breaking Capacity
    2000 VA
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Immunity To Microbreaks
    10 ms
  • Temperature Drift
    +/- 0.05 %/°C
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Voltage Drift
    +/- 0.2 %/V
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Voltage Range
    0.85...1.1 Us
  • Product Or Component Type
    Multifunction relay
  • Range Of Product
    Harmony Timer Relays
  • Control Type
    Rotary knob front panel
  • Device Short Name
    RE22
  • Nominal Output Current
    8 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RE22R2MXMU on Powermatic Associates is $64.50. Order now.

RE22R2MXMU Related Documents

Instruction Sheet-1631030859043.pdfProduct Datasheet-1631030859052.pdfCatalog-1631030859045.pdf
