Part#:RE22R1QMQ

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

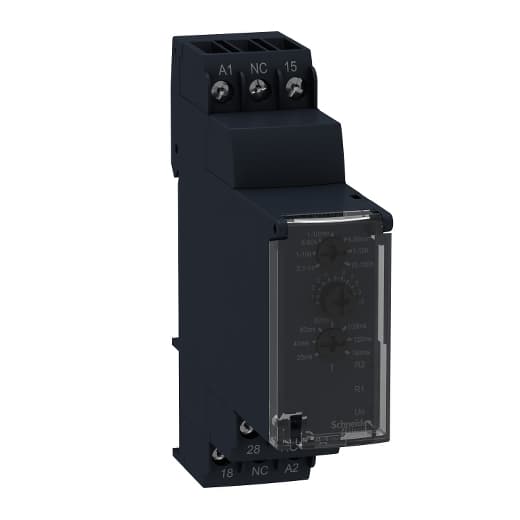

Schneider Electric RE22R1QMQ is an analog timer designed for modular installation on a DIN rail, featuring a single function Star-delta timer with two normally open outputs sharing the same common. It is controlled via a front panel rotary knob, with a control signal pulse width of 100ms under load and 30ms, and a recovery time of 120ms upon de-energization. The timer has a power-on delay of 100ms, operates with a rated current of 8 A, and falls under the RE22 sub-range. It offers a degree of protection of IP40 for both the front face and housing, and IP20 for the terminal block, with a self-extinguishing housing material. Power consumption is rated at 8 VA for 240Vac and 17 VA for 380-440Vac. The RE22R1QMQ features SPDT contacts, a rated impulse voltage of 5 kV, and a supply voltage range of 230-440 V AC, with a minimum of 20.4 V. It includes a green LED display indicating timing progress or power status, and a yellow LED for relay activation. Its electrical durability is rated for 100,000 operations at 250Vac with a resistive load, and up to 10,000,000 operations. The timer offers a wide time delay range from 1 second to 300 hours, and operates within a temperature range of -20°C to +60°C.

Product Details

  • Time Delay Range
    1...10 h 10...100 h 6...60 s 1...10 min 0.1...1 s 1...10 s 6...60 min
  • Status LED
    Green LED flashing)timing in progress Green LED steady)power ON Yellow LEDrelay energised
  • Safety Reliability Data
    B10d = 260000 MTTFd = 273.9 years
  • Power Consumption In VA
    8 VA 230...240 V 17 VA 380...440 V
  • Connections - Terminals
    Screw terminals, 2 x 1.5 mm² with cable end Screw terminals, 2 x 2.5 mm² without cable end
  • Control Signal Pulse Width
    30 ms 100 ms under load
  • [Us] Rated Supply Voltage
    380...440 V AC 230...240 V AC
  • Rated Impulse Withstand Voltage
    5 kV 1.2…50 µs IEC 60664-1 5 kV IEC 61812-1
  • Mounting Position
    Any position in relation to normal vertical mounting plane
  • Maximum Switching Voltage
    250 V
  • Maximum Switching Current
    8 mA
  • Nominal Output Current
    8 A
  • Net Weight
    0.21 lb(US) (0.093 kg)
  • Width
    0.89 in (22.5 mm)
  • Mounting Support
    35 mm DIN rail conforming to EN/IEC 60715
  • Power On Delay
    100 ms
  • Mechanical Durability
    10000000 cycles
  • Electrical Durability
    100000 cycles for resistive load, 8 A at 250 V, AC
  • Breaking Capacity
    2000 VA
  • Insulation Resistance
    100 MOhm 500 V DC IEC 60664-1
  • Immunity To Microbreaks
    10 ms
  • Minimum Switching Current
    10 mA 5 V
  • Setting Accuracy Of Time Delay
    +/- 10 % of full scale 25 °C IEC 61812-1
  • Recovery Time
    120 ms on de-energisation
  • Voltage Drift
    +/- 0.2 %/V
  • Repeat Accuracy
    +/- 0.5 % IEC 61812-1
  • Temperature Drift
    +/- 0.05 %/°C
  • Supply Frequency
    50...60 Hz +/- 5 %
  • Voltage Range
    0.85...1.1 Us
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
  • Housing Material
    Self-extinguishing
  • Time Delay Type
    Star-delta
  • Contacts Type And Composition
    1 C/O timed contact
  • Control Type
    Rotary knob front panel
  • Product Or Component Type
    Single function relay
  • Discrete Output Type
    Relay
  • Range Of Product
    Harmony Timer Relays
  • Device Short Name
    RE22

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
