ML95.100
Puls
Product Lifecycle: Active

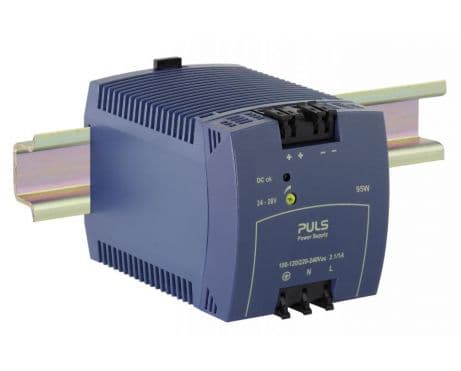

PULS ML95.100 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit offers a rated current of 3.9A at 24Vdc and features spring-clamp connections for ease of installation. It supports a wide supply voltage range, accepting AC inputs from 85Vac to 132Vac or 184Vac to 264Vac (auto-select based on 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac nominal; 47-63Hz) and DC inputs from 213Vdc to 377Vdc (220Vdc, 250Vdc nominal). The ML95.100 is housed in a PC / ABS blend, measuring 73mm in width, 75mm in height, and 103mm in depth. It is suitable for single-phase (1AC) or DC networks, with a rated power of 95W and an adjustable output voltage range of 24Vdc to 28Vdc. It includes protection functions such as NTC for input inrush current limiting, achieves an efficiency of 0.9 with a 230Vac input, and has a maximum inrush current consumption of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation/losses are rated at 10.5W, and it features a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.
![ML95.100](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2FML95.100.jpg&w=3840&q=75)
PULS ML95.100 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is designed according to NEC Class 2 standards. This unit offers a rated current of 3.9A at 24Vdc and features spring-clamp connections for ease of installation. It supports a wide supply voltage range, accepting AC inputs from 85Vac to 132Vac or 184Vac to 264Vac (auto-select based on 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac nominal; 47-63Hz) and DC inputs from 213Vdc to 377Vdc (220Vdc, 250Vdc nominal). The ML95.100 is housed in a PC / ABS blend, measuring 73mm in width, 75mm in height, and 103mm in depth. It is suitable for single-phase (1AC) or DC networks, with a rated power of 95W and an adjustable output voltage range of 24Vdc to 28Vdc. It includes protection functions such as NTC for input inrush current limiting, achieves an efficiency of 0.9 with a 230Vac input, and has a maximum inrush current consumption of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation/losses are rated at 10.5W, and it features a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.
Product details
- UL File No.E198865
- Phase1 Phase
- Height75 mm
- Width73 mm
- Depth103 mm
- Current Output4 A
- Current Input2 A
- Power95 W
- Voltage Output24 - 28 VDC
- Voltage Input100 - 120 VAC
- Efficiency90 %
