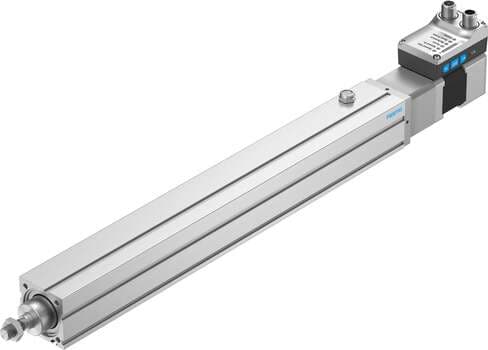

8118280 Festo Electric Actuators

Product Details

• Shock resistance
  Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
• Ready status indication
  LED
• Power supply, connection technology
  M12x1, T-coded as per EN 61076-2-111
• Number of digital logic inputs
  2
• KC characters
  KC EMC
• Vibration resistance
  Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
• Input switching logic
  NPN (negative switching) PNP (positive switching)
• Characteristics of logic input
  Configurable Not galvanically isolated
• Note on ambient temperature
  Above an ambient temperature of 30°C, the power must be reduced by 2% per K.
• Number of digital logic outputs 24 V DC
  2
• Power supply, number of pins/wires
  4
• IO-Link®, service data contents IN
  32 bit force 32 bit speed
• IO-Link®, port class
  A
• IO-Link®, process data content OUT
  1 bit (move in) 1 bit (quit error)
• IO-Link®, data memory required
  500 byte
• Mounting position
  Any
• Spindle type
  Ball screw drive
• Max. acceleration
  1.5 m/s²
• Permissible voltage fluctuations
  +/- 15 %
• Certification
  RCM compliance mark
Max. feed force Fx
450 N
Moving mass at 0 mm stroke
179 g
Piston rod material
High-alloy stainless steel
Spindle material
Roller bearing steel
Display
LED
Parameterization interface
IO-Link® User interface
Characteristics of digital logic outputs
Configurable Not galvanically isolated
Power supply, type of connection
Plug
Logic interface, number of poles/wires
8
Max. current consumption
3000 mA
IO-Link®, SIO mode support
Yes
IO-Link®, process data width IN
2 Byte
Size
45
Stroke reserve
0 mm
Screw diameter
10 mm
Type code
EPCS
Protection against torsion/guide
With plain-bearing guide
Repetition accuracy
±0.02 mm
Max. cable length
15 m outputs 20 m for IO-Link® operation
Logic input specification
Based on IEC 61131-2, type 1
Additional functions
User interface Integrated end-position sensing
Logic interface, connection pattern
00992264
Power supply, connection pattern
00995989
Logic interface, connection type
Plug
Switching logic at outputs
NPN (negative switching) PNP (positive switching)
Logic interface, connection technology
M12x1, A-coded as per EN 61076-2-101
DC nominal voltage
24 V
Work range of logic input
24 V
Max. current of digital logic outputs
100 mA
Product weight
2415 g
Rotor position sensor resolution
16 bit
IO-Link®, process data width OUT
2 Byte
Nominal current
3 A
IO-Link®, minimum cycle time
1 ms
IO-Link®, number of ports
1
Reversing backlash
100 µm
IO-Link®, process data content IN
1 bit (state device) 1 bit (state out)
IO-Link®, communication mode
COM3 (230.4 kBd)
Piston rod thread
M10x1.25
Spindle pitch
3 mm/U
IO-Link®, protocol version
Device V 1.1
Stroke
300 mm
Max. angle of rotation of the piston rod +/-
1 deg
Design
Electric actuator With integrated drive
Rotor position sensor
Absolute encoder, single-turn
Insulation protection class
B
Ambient temperature
0 °C ... 50 °C
Max. torque My
2.9 Nm
Additional weight per 10 mm stroke
41 g
Type of mounting
With internal thread With accessories
Piston rod end
External thread
Symbol
00997294
Rotor position sensor measuring principle
Magnetic
Duty cycle
100%
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Storage temperature
-20 °C ... 60 °C
Guide value for payload, horizontal
60 kg
Motor type
Stepper motor
Homing
Fixed stop block positive Reference switch
Max. speed
0.074 m/s
Relative air humidity
0 - 90 % Non-condensing
Corrosion resistance class (CRC)
0 - No corrosion stress
Max. torque Mz
2.9 Nm
Guide value for payload, vertical
23 kg
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Degree of protection
IP40
Max. torque Mx
0 Nm
Max. radial force on actuator shaft
180 N
Housing material
Wrought aluminum alloy, smooth-anodized
Spindle nut material
Steel
Basic weight with 0 mm stroke
1185 g
Additional moving mass per 10 mm stroke
4.9 g
