8118175 Festo Pneumatic Valves Accessories

8118175 on Powermatic Associates
Festo

Part#:8118175

Alt. Part#:VACC-S18-120-K4-7-NM4ME

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

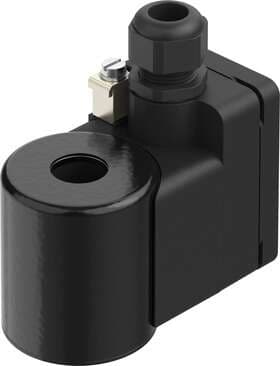

Solenoid coil VACC-S18-120-K4-7-NM4ME

Product Details

  • Mounting position
    Any
  • Insulation class
    H
  • Explosive ambient temperature
    T4, T120°C: -25°C <= Ta <= +40°C
  • Switching position indication
    no
  • Certificate issuing authority
    INMETRO DNV 19.0135X
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Permissible voltage fluctuations
    -15 % / +10 %
  • Degree of protection
    IP66
  • Electrical connection
    Terminal box, cable entry thread M20x1.5
  • Actuation type
    Electrical
  • Coil characteristics
    48 V DC: 12.0 W
  • Type of ignition protection for gas
    Ex eb mb IIC T4 Gb
  • Type code
    VACC
  • Duty cycle
    100%
  • Type of (ignition) protection for dust
    Ex tb IIIC T120°C Db
  • Product weight
    580 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
