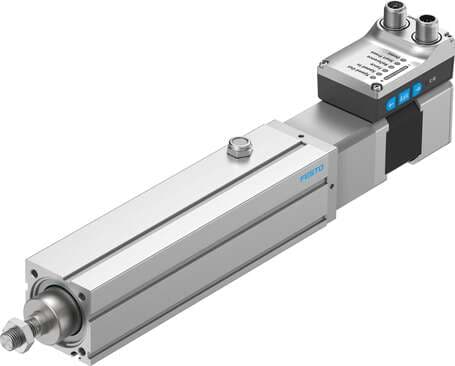

8118277 Festo Electric Actuators

Product Details

• Display
  LED
• Ready status indication
  LED
• Shock resistance
  Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
• Input switching logic
  NPN (negative switching) PNP (positive switching)
• Parameterization interface
  IO-Link® User interface
• Characteristics of logic input
  Configurable Not galvanically isolated
• Logic interface, connection pattern
  00992264
• KC characters
  KC EMC
• Vibration resistance
  Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
• Switching logic at outputs
  NPN (negative switching) PNP (positive switching)
• Characteristics of digital logic outputs
  Configurable Not galvanically isolated
• Power supply, number of pins/wires
  4
• Product weight
  1800 g
• IO-Link®, service data contents IN
  32 bit force 32 bit speed
• IO-Link®, data memory required
  500 byte
• Stroke reserve
  0 mm
• Mounting position
  Any
• Symbol
  00997294
• Repetition accuracy
  ±0.02 mm
• Permissible voltage fluctuations
  +/- 15 %
Storage temperature
-20 °C ... 60 °C
Max. radial force on actuator shaft
180 N
Max. cable length
15 m outputs 20 m for IO-Link® operation
Logic input specification
Based on IEC 61131-2, type 1
Additional functions
User interface Integrated end-position sensing
Power supply, connection pattern
00995989
Power supply, type of connection
Plug
Max. current of digital logic outputs
100 mA
Logic interface, number of poles/wires
8
Note on ambient temperature
Above an ambient temperature of 30°C, the power must be reduced by 2% per K.
DC nominal voltage
24 V
Work range of logic input
24 V
IO-Link®, minimum cycle time
1 ms
IO-Link®, protocol version
Device V 1.1
IO-Link®, process data content OUT
1 bit (move in) 1 bit (quit error)
Reversing backlash
100 µm
Screw diameter
10 mm
Piston rod end
External thread
Rotor position sensor
Absolute encoder, single-turn
Max. acceleration
1.5 m/s²
Max. speed
0.074 m/s
Certification
RCM compliance mark
Guide value for payload, vertical
23 kg
Additional weight per 10 mm stroke
41 g
Spindle material
Roller bearing steel
Power supply, connection technology
M12x1, T-coded as per EN 61076-2-111
Logic interface, connection type
Plug
Number of digital logic inputs
2
IO-Link®, SIO mode support
Yes
IO-Link®, process data width IN
2 Byte
Stroke
150 mm
Type code
EPCS
Spindle type
Ball screw drive
Duty cycle
100%
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Relative air humidity
0 - 90 % Non-condensing
Max. feed force Fx
450 N
Guide value for payload, horizontal
60 kg
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Piston rod material
High-alloy stainless steel
Logic interface, connection technology
M12x1, A-coded as per EN 61076-2-101
Number of digital logic outputs 24 V DC
2
Max. current consumption
3000 mA
Nominal current
3 A
IO-Link®, process data content IN
1 bit (state device) 1 bit (state out)
IO-Link®, process data width OUT
2 Byte
IO-Link®, communication mode
COM3 (230.4 kBd)
Piston rod thread
M10x1.25
Spindle pitch
3 mm/U
Motor type
Stepper motor
Rotor position sensor measuring principle
Magnetic
Insulation protection class
B
Degree of protection
IP40
Ambient temperature
0 °C ... 50 °C
Max. torque Mz
2.9 Nm
Moving mass at 0 mm stroke
179 g
Type of mounting
With internal thread With accessories
Rotor position sensor resolution
16 bit
IO-Link®, port class
A
IO-Link®, number of ports
1
Size
45
Max. angle of rotation of the piston rod +/-
1 deg
Design
Electric actuator With integrated drive
Protection against torsion/guide
With plain-bearing guide
Homing
Fixed stop block positive Reference switch
Corrosion resistance class (CRC)
0 - No corrosion stress
Max. torque Mx
0 Nm
Max. torque My
2.9 Nm
Basic weight with 0 mm stroke
1185 g
Spindle nut material
Steel
Additional moving mass per 10 mm stroke
4.9 g
Housing material
Wrought aluminum alloy, smooth-anodized
