8118179 Festo Pneumatic Valves Accessories

8118179 on Powermatic Associates
Festo

Part#:8118179

Alt. Part#:VACC-S18-35-K4-1UF-NM4ME

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

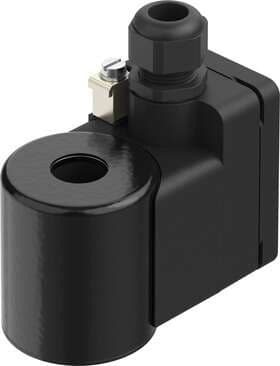

Solenoid coil VACC-S18-35-K4-1UF-NM4ME

Product Details

  • Duty cycle
    100%
  • Explosive ambient temperature
    T5, T95°C: -25°C <= Ta <= +60°C T6, T80°C: -25°C <= Ta <= +50°C
  • Degree of protection
    IP66
  • Type code
    VACC
  • Switching position indication
    no
  • Type of ignition protection for gas
    Ex eb mb IIC T6, T5 Gb
  • Electrical connection
    Terminal box, cable entry thread M20x1.5
  • Mounting position
    Any
  • Coil characteristics
    24 V DC: 3.5 W 24 V AC: 50/60 Hz, power 3.5 VA
  • Certificate issuing authority
    INMETRO DNV 19.0135X
  • Internal fuse protection
    Fuse
  • Permissible voltage fluctuations
    -15 % / +10 %
  • Product weight
    580 g
  • Actuation type
    Electrical
  • Insulation class
    H
  • Type of (ignition) protection for dust
    Ex tb IIIC T80°C, T95°C Db
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
