8100662 Festo Pneumatic Actuators
Part#:8100662
Alt. Part#:DGTZ-GF-32-60-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

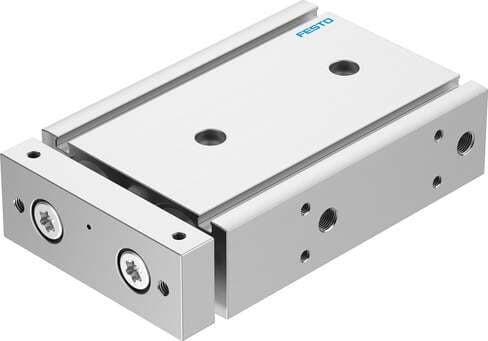

twin-piston cylinder DGTZ-GF-32-60-P-A Stroke: 60 mm, Adjustable end-position range/length: 10 mm, Piston diameter: 32 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both ends
Product Details
- Position sensing For proximity sensor
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Impact energy in the end positions 0.4 J
- Moving mass 1468 g
- Pneumatic connection G1/8
- Piston rod material High-alloy stainless steel
- Type code DGTZ
- Guide Sliding guide
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Max. payload as a function of the stroke at defined distance xs 17.6 N
- Theoretical force at 6 bar, advancing 966 N
- Seals material NBR
- Adjustable end position range/length 10 mm
- Design Guide
- Operating pressure 0.1 MPa ... 0.8 MPa
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Theoretical force at 6 bar, retracting 724 N
- Note on materials RoHS-compliant
- Housing material Wrought aluminum alloy, anodized
- Stroke 60 mm
- Drive unit operating mode Yoke
- Symbol 00991249
- Piston diameter 32 mm
- Cushioning Elastic cushioning rings/pads at both ends
- Mounting position Any
- Mode of operation Double-acting
- Ambient temperature -10 °C ... 80 °C
- Product weight 1468 g
- Cover material Wrought aluminum alloy
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
