Part#:8100570

Alt. Part#:DGTZ-GF-16-10-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

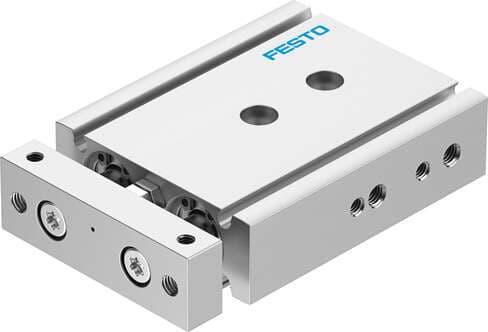

twin-piston cylinder DGTZ-GF-16-10-P-A Stroke: 10 mm, Adjustable end-position range/length: 10 mm, Piston diameter: 16 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both ends

Product Details

  • Mounting position
    Any
  • Mode of operation
    Double-acting
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Max. payload as a function of the stroke at defined distance xs
    9.5 N
  • Piston rod material
    High-alloy stainless steel
  • Adjustable end position range/length
    10 mm
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Guide
    Sliding guide
  • Operating pressure
    0.1 MPa ... 0.8 MPa
  • Theoretical force at 6 bar, retracting
    181 N
  • Moving mass
    263 g
  • Note on materials
    RoHS-compliant
  • Drive unit operating mode
    Yoke
  • Position sensing
    For proximity sensor
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Theoretical force at 6 bar, advancing
    242 N
  • Seals material
    NBR
  • Stroke
    10 mm
  • Type code
    DGTZ
  • Design
    Guide
  • Symbol
    00991249
  • Impact energy in the end positions
    0.15 J
  • Pneumatic connection
    M5
  • Cover material
    Wrought aluminum alloy
  • Piston diameter
    16 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    -10 °C ... 80 °C
  • Product weight
    263 g
  • Housing material
    Wrought aluminum alloy, anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8100570 Related Documents

8100570 DataSheet.pdf

Similar products from: Festo Pneumatic Actuators
