8100660 Festo Pneumatic Actuators

8100660 on Powermatic Associates
Festo

Part#:8100660

Alt. Part#:DGTZ-GF-32-40-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

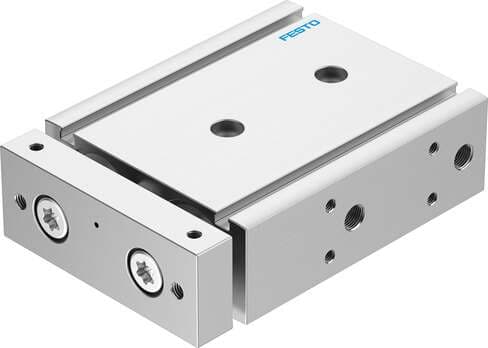

twin-piston cylinder DGTZ-GF-32-40-P-A Stroke: 40 mm, Adjustable end-position range/length: 10 mm, Piston diameter: 32 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both ends

Product Details

  • Piston diameter
    32 mm
  • Position sensing
    For proximity sensor
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight
    1300 g
  • Housing material
    Wrought aluminum alloy, anodized
  • Adjustable end position range/length
    10 mm
  • Design
    Guide
  • Operating pressure
    0.1 MPa ... 0.8 MPa
  • Ambient temperature
    -10 °C ... 80 °C
  • Moving mass
    1300 g
  • Note on materials
    RoHS-compliant
  • Drive unit operating mode
    Yoke
  • Mounting position
    Any
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Max. payload as a function of the stroke at defined distance xs
    22.5 N
  • Pneumatic connection
    G1/8
  • Seals material
    NBR
  • Stroke
    40 mm
  • Guide
    Sliding guide
  • Symbol
    00991249
  • Impact energy in the end positions
    0.4 J
  • Type code
    DGTZ
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Mode of operation
    Double-acting
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Theoretical force at 6 bar, advancing
    966 N
  • Theoretical force at 6 bar, retracting
    724 N
  • Cover material
    Wrought aluminum alloy
  • Piston rod material
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
