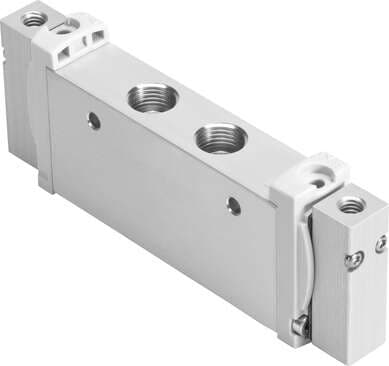

8036713 Festo Directional Control Valves

Product Details

• Lap
  Underlap
• Standard nominal flow rate
  1600 l/min
• Operating pressure
  1 bar ... 10 bar
• Type code
  VUWS
• Mounting position
  Any
• Temperature of medium
  -10 °C ... 60 °C
• Pilot air port 10
  G1/8
• Pneumatic connection 4
  G3/8
• Piston slide material
  POM
• Material of screws
  Steel, galvanized
• Actuation type
  Pneumatic
• Certification
  c UL us - Recognized (OL)
• Pilot air supply port
  Internal
• Pilot pressure
  2.5 bar ... 10 bar
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  Optionally: With through-hole
• Pneumatic connection 2
  G3/8
• Housing material
  Die cast aluminum, painted
• Pneumatic working port
  G3/8
• Nominal width
  7.8 mm
Type of control
Direct
Symbol
00995851
Explosion prevention and protection
Observe the information on the certificate Zone 22 (ATEX)
Ambient temperature
-10 °C ... 60 °C
Venting hole connection
Not ducted
Pneumatic connection 3
G3/8
Seals material
HNBR TPE-U(PU)
Reset method
Mechanical spring
Exhaust air function
With flow control option
Flow direction
Non-reversible
On switching time
12 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
533 g
Note on materials
RoHS-compliant
Valve function
2x3/2, open, monostable
Valve size
31 mm
Design
Plate seat
Sealing principle
Soft
Manual override
None
Switching time off
45 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 1
G3/8
Pneumatic connection 5
G3/8
