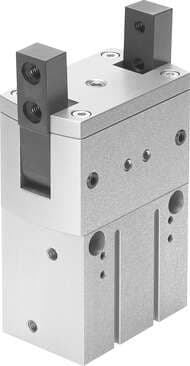

563914 Festo Grippers

Product Details

• Size
  50
• Number of gripper jaws
  2
• Position sensing
  For proximity sensor For inductive proximity sensors
• Min. opening time at 6 bar
  350 ms
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Relubrication interval for guidance elements
  10 MioCyc
• Housing material
  Aluminum Smooth anodized
• Max. interchangeability
  ≤ 0.2 mm
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Type code
  HGRT
• Operating pressure
  3 bar ... 8 bar
• Total gripping torque at 6 bar, opening
  8424 Ncm
• Maximum force on gripper jaw Fz, static
  1200 N
• Product weight
  3100 g
• Gripper jaw material
  Steel Hardened
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Gripper function
  Radial
• Mode of operation
  Double-acting
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Ambient temperature
  5 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
10 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
Max. opening angle
180 deg
Mounting position
Any
Symbol
00991894
Max. operating frequency of pneumatic gripper
≤ 2 Hz
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Maximum torque on gripper jaw, My static
35 Nm
Mass moment of inertia
43.39 kgcm²
Pneumatic connection
G1/8
Rotational symmetry
≤ 0.2 mm
Design
Positively driven motion sequence
Min. closing time at 6 bar
403 ms
Total gripping torque at 6 bar, closing
7754 Ncm
Type of mounting
With internal thread and centering sleeve
