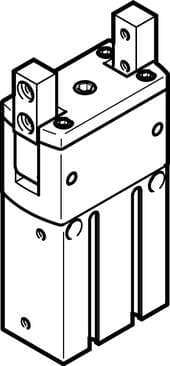

563905 Festo Grippers

Product Details

• Rotational symmetry
  ≤ 0.2 mm
• Mode of operation
  Double-acting
• Min. opening time at 6 bar
  233 ms
• Size
  16
• Max. opening angle
  180 deg
• Mounting position
  Any
• Design
  Positively driven motion sequence
• Symbol
  00991895
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Maximum force on gripper jaw Fz, static
  50 N
• Maximum torque on gripper jaw, Mz static
  0.3 Nm
• Max. interchangeability
  ≤ 0.2 mm
• Number of gripper jaws
  2
• Position sensing
  For proximity sensor For inductive proximity sensors
• Mass moment of inertia
  0.21 kgcm²
• Relubrication interval for guidance elements
  10 MioCyc
• Gripper jaw material
  Steel Hardened
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Type code
  HGRT
• Operating pressure
  4 bar ... 8 bar
Min. closing time at 6 bar
185 ms
Ambient temperature
5 °C ... 60 °C
Pneumatic connection
M3
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Gripper function
Radial
Max. operating frequency of pneumatic gripper
≤ 3 Hz
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Type of mounting
With internal thread and centering sleeve
Corrosion resistance class (CRC)
1 - Low corrosion stress
Maximum torque on gripper jaw, My static
3.9 Nm
Product weight
150 g
Housing material
Aluminum Smooth anodized
Note on materials
Free of copper and PTFE RoHS-compliant
