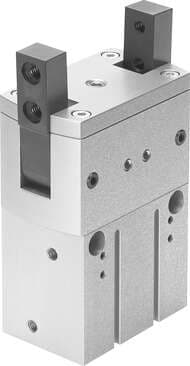

563910 Festo Grippers

Product Details

• Size
  32
• Max. opening angle
  180 deg
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Gripper function
  Radial
• Position sensing
  For proximity sensor For inductive proximity sensors
• Min. opening time at 6 bar
  359 ms
• Number of gripper jaws
  2
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Total gripping torque at 6 bar, opening
  2024 Ncm
• Type of mounting
  With internal thread and centering sleeve
• Housing material
  Aluminum Smooth anodized
• Max. interchangeability
  ≤ 0.2 mm
• Type code
  HGRT
• Design
  Positively driven motion sequence
• Max. operating frequency of pneumatic gripper
  ≤ 3 Hz
• Ambient temperature
  5 °C ... 60 °C
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Mounting position
  Any
• Rotational symmetry
  ≤ 0.2 mm
• Mode of operation
  Double-acting
Symbol
00991894
Min. closing time at 6 bar
403 ms
Total gripping torque at 6 bar, closing
1856 Ncm
Maximum torque on gripper jaw, Mz static
1.3 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
Operating pressure
3 bar ... 8 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Maximum force on gripper jaw Fz, static
280 N
Product weight
840 g
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Mass moment of inertia
4.62 kgcm²
Maximum torque on gripper jaw, My static
13.5 Nm
Pneumatic connection
M5
Gripper jaw material
Steel Hardened
Relubrication interval for guidance elements
10 MioCyc
