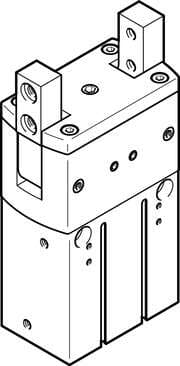

563915 Festo Grippers

Product Details

• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Type code
  HGRT
• Gripper function
  Radial
• Min. opening time at 6 bar
  490 ms
• Mass moment of inertia
  47.7 kgcm²
• Maximum torque on gripper jaw, Mz static
  10 Nm
• Gripper jaw material
  Steel Hardened
• Max. interchangeability
  ≤ 0.2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Symbol
  00991895
• Min. closing time at 6 bar
  355 ms
• Maximum force on gripper jaw Fz, static
  1200 N
• Pneumatic connection
  G1/8
• Max. opening angle
  180 deg
• Mode of operation
  Double-acting
• Operating pressure
  4 bar ... 8 bar
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Product weight
  3500 g
• Rotational symmetry
  ≤ 0.2 mm
Mounting position
Any
Max. operating frequency of pneumatic gripper
≤ 2 Hz
Corrosion resistance class (CRC)
1 - Low corrosion stress
Maximum torque on gripper jaw, My static
35 Nm
Type of mounting
With internal thread and centering sleeve
Housing material
Aluminum Smooth anodized
Size
50
Number of gripper jaws
2
Design
Positively driven motion sequence
Position sensing
For proximity sensor For inductive proximity sensors
Ambient temperature
5 °C ... 60 °C
Relubrication interval for guidance elements
10 MioCyc
Note on materials
Free of copper and PTFE RoHS-compliant
