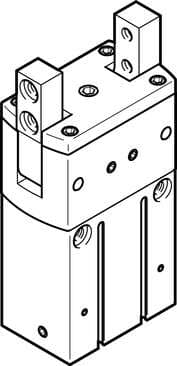

563909 Festo Grippers

Product Details

• Size
  25
• Rotational symmetry
  ≤ 0.2 mm
• Max. opening angle
  180 deg
• Gripper function
  Radial
• Operating pressure
  4 bar ... 8 bar
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Maximum torque on gripper jaw, Mz static
  1 Nm
• Housing material
  Aluminum Smooth anodized
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Mounting position
  Any
• Symbol
  00991895
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum force on gripper jaw Fz, static
  180 N
• Product weight
  610 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Max. interchangeability
  ≤ 0.2 mm
• Type code
  HGRT
• Mode of operation
  Double-acting
• Min. opening time at 6 bar
  443 ms
Relubrication interval for guidance elements
10 MioCyc
Number of gripper jaws
2
Design
Positively driven motion sequence
Max. operating frequency of pneumatic gripper
≤ 3 Hz
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Mass moment of inertia
2.33 kgcm²
Type of mounting
With internal thread and centering sleeve
Gripper jaw material
Steel Hardened
Position sensing
For proximity sensor For inductive proximity sensors
Min. closing time at 6 bar
301 ms
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, My static
10 Nm
Pneumatic connection
M5
