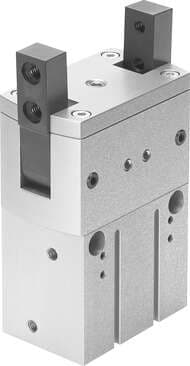

563912 Festo Grippers

Product Details

• Number of gripper jaws
  2
• Max. opening angle
  180 deg
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Gripper function
  Radial
• Operating pressure
  3 bar ... 8 bar
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Total gripping torque at 6 bar, closing
  3526 Ncm
• Size
  40
• Mode of operation
  Double-acting
• Symbol
  00991894
• Min. closing time at 6 bar
  320 ms
• Maximum force on gripper jaw Fz, static
  400 N
• Product weight
  1580 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Max. interchangeability
  ≤ 0.2 mm
• Rotational symmetry
  ≤ 0.2 mm
• Design
  Positively driven motion sequence
• Max. operating frequency of pneumatic gripper
  ≤ 2 Hz
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Mass moment of inertia
  13.87 kgcm²
Relubrication interval for guidance elements
10 MioCyc
Gripper jaw material
Steel Hardened
Max. gripper jaw angular play ax, ay
≤ 0.1 deg
Type code
HGRT
Position sensing
For proximity sensor For inductive proximity sensors
Min. opening time at 6 bar
283 ms
Ambient temperature
5 °C ... 60 °C
Type of mounting
With internal thread and centering sleeve
Mounting position
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Total gripping torque at 6 bar, opening
3892 Ncm
Maximum torque on gripper jaw, My static
17.5 Nm
Pneumatic connection
G1/8
Maximum torque on gripper jaw, Mz static
1.6 Nm
Housing material
Aluminum Smooth anodized
