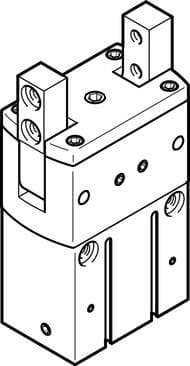

563908 Festo Grippers

Product Details

• Size
  25
• Type code
  HGRT
• Symbol
  00991894
• Min. closing time at 6 bar
  343 ms
• Ambient temperature
  5 °C ... 60 °C
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Design
  Positively driven motion sequence
• Operating pressure
  3 bar ... 8 bar
• Max. opening angle
  180 deg
• Gripper function
  Radial
• Position sensing
  For proximity sensor For inductive proximity sensors
• Max. interchangeability
  ≤ 0.2 mm
• Rotational symmetry
  ≤ 0.2 mm
• Number of gripper jaws
  2
• Mounting position
  Any
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Mass moment of inertia
  2.1 kgcm²
• Product weight
  540 g
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Mode of operation
  Double-acting
Min. opening time at 6 bar
309 ms
Total gripping torque at 6 bar, opening
1348 Ncm
Maximum torque on gripper jaw, My static
10 Nm
Type of mounting
With internal thread and centering sleeve
Gripper jaw material
Steel Hardened
Max. operating frequency of pneumatic gripper
≤ 3 Hz
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum torque on gripper jaw, Mz static
1 Nm
Note on materials
Free of copper and PTFE RoHS-compliant
Corrosion resistance class (CRC)
1 - Low corrosion stress
Total gripping torque at 6 bar, closing
1208 Ncm
Maximum force on gripper jaw Fz, static
180 N
Housing material
Aluminum Smooth anodized
Relubrication interval for guidance elements
10 MioCyc
Pneumatic connection
M5
