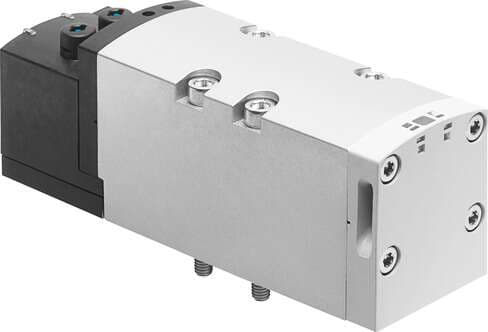

560826 Festo Directional Control Valves

Product Details

• Valve function
  2x3/2, closed, monostable
• Actuation type
  Electrical
• Standard nominal flow rate
  2400 l/min
• Degree of protection
  IP65 NEMA 4
• Sealing principle
  Soft
• Flow direction
  Reversible only
• Flow rate of pneumatic valve
  3000 l/min
• Nominal pick-up current per solenoid coil
  165 mA to 30 ms
• Permissible voltage fluctuations
  +/- 10 %
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Ambient temperature
  -5 °C ... 50 °C
• Pilot air port 12/14
  Sub-base, size 2 as per ISO 5599-2
• Pneumatic connection 5
  Sub-base, size 2 as per ISO 5599-2
• Pilot pressure MPa
  0.3 MPa ... 1 MPa
• Pneumatic working port
  Sub-base, size 2 as per ISO 5599-2 G1/2
• Type code
  VSVA
• Pilot air supply port
  External
• Symbol
  00992836
• Optimized flow rate of pneumatic valve pneumatically concatenated flow
  2400 l/min
• Max. negative test pulse on 1 signal
  3500 µs
Coil characteristics
24 V DC: 4.6 W
CE marking (see declaration of conformity)
As per EU EMC directive
Corrosion resistance class (CRC)
0 - No corrosion stress
Product weight
740 g
Pneumatic connection 3
Sub-base, size 2 as per ISO 5599-2
Note on materials
RoHS-compliant
Design
Piston gate valve
Exhaust air function
With flow control option Via individual sub-base
Manual override
Detenting Non-detenting
Flow rate of pneumatic valve on individual sub-base
2600 l/min
Nominal current with current reduction
35 mA after 30 ms
Max. positive test pulse with 0 signal
1000 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Electrical connection
Plug-in as per ISO 5599-2
Pneumatic connection 2
Sub-base, size 2 as per ISO 5599-2
Seals material
FPM NBR
Material of screws
Steel, galvanized
KC characters
KC EMC
Width
52 mm
Width dimension
59 mm
Conforms to standard
ISO 5599-2
Mounting position
Any
Pilot pressure
3 bar ... 10 bar
Switching time off
30 ms
Duty cycle
100%
Surge resistance
2.5 kV
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Temperature of medium
-5 °C ... 50 °C
Type of mounting
On sub-base
Pneumatic connection 1
Sub-base, size 2 as per ISO 5599-2
Operating pressure
-0.9 bar ... 10 bar
Operating voltage
24V DC
Certification
C-Tick c UL us - Recognized (OL)
Type of control
Pilot-controlled
Signal status display
LED
On switching time
30 ms
Contamination level
3
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Relative air humidity
0 - 90 %
Pilot exhaust air port 82/84
Optionally: Ducted
Pneumatic connection 4
Sub-base, size 2 as per ISO 5599-2
Housing material
Die-cast aluminum PA
