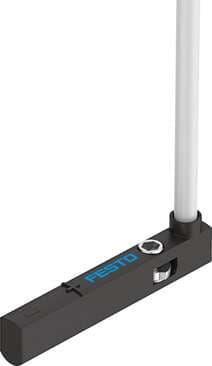

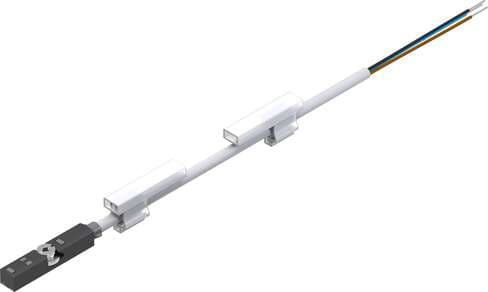

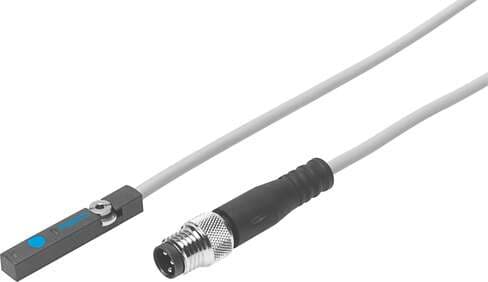

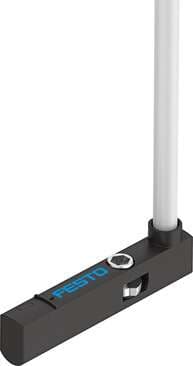

551394 Festo Proximity Sensors

Product Details

• Electrical connection 1, connection type
  Cable with plug
• Electrical connection 1, type of mounting
  Screw-type lock
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Repetition accuracy under constant conditions
  <= 0.05 mm, approach from the side
• Short-circuit protection
  Pulsed
• Max. output current
  150 mA
• Material of cable sheath
  TPE-U(PU)
• Switching status indication
  LED yellow
• Electrical output
  PNP
• Type code
  SIES
• Design
  for T-slot
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Switching output
  PNP
• Electrical connection
  3-pin Rotatable thread
• Cable characteristic
  Standard + cable chain
• Surge resistance
  0.8 kV
• Contamination level
  3
• Electrical connection 1, connection technology
  M8x1 A-coded as per EN 61076-2-104
• Electrical connection for input 1, connection pattern
  00991155
• Electrical connection 1, number of pins/wires
  3
CE marking (see declaration of conformity)
As per EU EMC directive
Rated operating distance
1.5 mm
Max. switching frequency
4500 Hz
Reverse polarity protection
for all electrical connections
Cable length
5 m
Housing material
Brass, nickel-plated High-alloy stainless steel
Ambient temperature with flexible cable installation
-5 °C ... 70 °C
KC characters
KC EMC
Conforms to standard
EN 60947-5-2
Ambient temperature
-25 °C ... 70 °C
DC operating voltage range
10 V ... 30 V
Connector cable test conditions
Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
Type of mounting
Flush with T-slot Can be inserted in slot from above
Degree of protection
IP65 IP67
Selection of sensor version
Special design
Symbol
00991614
Reduction factors
Aluminum = 0.62 Steel St 37 = 1.0
Switching element function
N/C contact
Idle current
≤ 10 mA
Connection outlet orientation
Longitudinal
Size
Slot 8
Insulation voltage
50 V
Selection of additional sensor information
For T-slot

Related documents 551394 Specs
