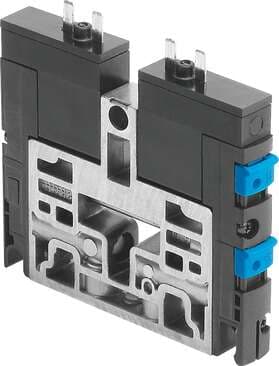

550702 Festo Directional Control Valves

Product Details

• Type code
  CPV10-EX
• Manual override
  Detenting Non-detenting
• Switching time off
  17 ms
• Required current consumption
  0.016 A
• Effective internal capacitance Ci
  Negligibly low
• Pilot air port 12/14
  Common port
• Pneumatic connection 2
  M7
• Standard nominal flow rate
  400 l/min
• Design
  Piston gate valve
• Nominal width
  4 mm
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• C value
  1.6 l/sbar
• Duty cycle
  100% in combination with holding current reduction
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Temperature of medium
  -5 °C ... 50 °C
• Pilot exhaust air port 82/84
  Common port
• Pneumatic connection 1
  Common port
• Pneumatic port 3/5 combined
  Common port
• Lap
  Overlap
Pneumatic working port
M7
Operating pressure
0 bar ... 10 bar
Type of control
Pilot-controlled
On switching time
15 ms
Max. input power Pi
0.76 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Storage temperature
-20 °C ... 40 °C
Product weight
70 g
Note on materials
RoHS-compliant
Housing material
Die-cast aluminum Steel
Actuation type
Electrical
Reset method
Pneumatic spring
Mounting position
Any
Symbol
00991802
Effective internal inductance Li
Negligibly low
Max. input current Ii
0.2 A
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 4
M7
Valve function
2x2/2, open/closed, monostable
Valve size
10 mm
Operating voltage
24V DC
Degree of protection
IP50
Exhaust air function
Without flow control option
Pilot air supply port
External Internal
b-value
0.35
Pilot pressure
3 bar ... 8 bar
Max. input voltage Vi
32 V
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
With through-hole
Pneumatic connection 11
Common port
Seals material
HNBR NBR
