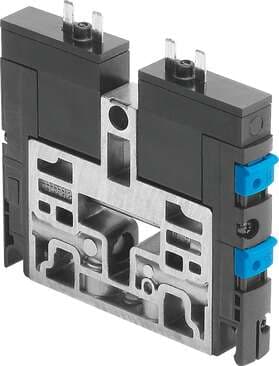

550701 Festo Directional Control Valves

Product Details

• Valve function
  2x2/2 closed, monostable
• Operating voltage
  24V DC
• Pneumatic working port
  M7
• Nominal width
  4 mm
• Mounting position
  Any
• b-value
  0.35
• Max. input voltage Vi
  32 V
• Temperature of medium
  -5 °C ... 50 °C
• Pilot exhaust air port 82/84
  Common port
• Pneumatic port 3/5 combined
  Common port
• Lap
  Overlap
• Standard nominal flow rate
  400 l/min
• Degree of protection
  IP50
• Sealing principle
  Soft
• Type of control
  Pilot-controlled
• Switching time off
  17 ms
• Required current consumption
  0.016 A
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Storage temperature
  -20 °C ... 40 °C
• Pneumatic connection 1
  Common port
Seals material
HNBR NBR
Actuation type
Electrical
Operating pressure
0 bar ... 10 bar
Type code
CPV10-EX
Manual override
Detenting Non-detenting
Symbol
00991801
Duty cycle
100% in combination with holding current reduction
Max. input power Pi
0.76 W
Effective internal capacitance Ci
Negligibly low
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot air port 12/14
Common port
Pneumatic connection 11
Common port
Note on materials
RoHS-compliant
Valve size
10 mm
Reset method
Pneumatic spring
Design
Piston gate valve
Pilot air supply port
External Internal
Pilot pressure
3 bar ... 8 bar
C value
1.6 l/sbar
Max. input current Ii
0.2 A
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-5 °C ... 50 °C
Product weight
70 g
Pneumatic connection 2
M7
Housing material
Die-cast aluminum Steel
Exhaust air function
Without flow control option
Flow direction
Non-reversible
On switching time
15 ms
Effective internal inductance Li
Negligibly low
Type of mounting
With through-hole
Pneumatic connection 4
M7

Related documents 550701 Specs
