550750 Festo Cable Assemblies

550750 on Powermatic Associates
Festo

Part#:550750

Alt. Part#:NEBM-M12G8-E-15-S1G9

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

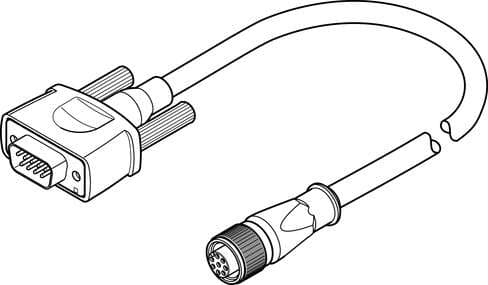

encoder cable NEBM-M12G8-E-15-S1G9 Suitable for servo motor EMMS-ST-... Cable identification: Without inscription label holder, Electrical connection 1, function: Field device side, Electrical connection 1, design: Round, Electrical connection 1, connecti

Product Details

  • Electrical connection 1, cable outlet
    Straight
  • Electrical connection for input 1, connection pattern
    00992265
  • Electrical connection 2, occupied pins/wires
    8
  • Electrical connection 1, design
    Round
  • Electrical connection 1, connection technology
    M12x1 A-coded as per EN 61076-2-101
  • Electrical connection 2, design
    Rectangular
  • Electrical connection 2, number of pins/wires
    9
  • Nominal operating voltage DC
    24 V
  • Cable characteristic
    Suitable for energy chains
  • Note on degree of protection
    IP30 for Sub-D plug In mounted state
  • Cable designation
    Without label holder
  • Electrical connection 1, connection type
    Socket
  • Electrical connection 2, function
    Control side
  • Electrical connection 2, connection technology
    Sub-D
  • Operating voltage range AC
    0 V ... 30 V
  • Bending radius, flexible cable installation
    ≥ 49 mm
  • Degree of protection
    IP65
  • CE marking (see declaration of conformity)
    As per EU RoHS directive
  • Electrical connection 1, function
    Field device end
  • Electrical connection 1, number of pins/wires
    8
  • Electrical connection 1, occupied pins/wires
    8
  • Electrical connection 2, connection type
    Plug
  • DC operating voltage range
    0 V ... 30 V
  • Cable length
    15 m
  • Nominal conductor cross section
    0.14 mm²
  • Ambient temperature with flexible cable installation
    -40 °C ... 70 °C
  • Color cable sheath
    Gray
  • Type code
    NEBM
  • Electrical connection 2, cable outlet
    Straight
  • Electrical connection 2, connection pattern
    00995639
  • Cable diameter
    6.5 mm
  • Ambient temperature
    -40 °C ... 70 °C
  • Nominal operating voltage AC
    24 V
  • Cable design
    4 x 2 x 0.14 mm² Shielded
  • Material of cable sheath
    TPE-U(PUR)
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
