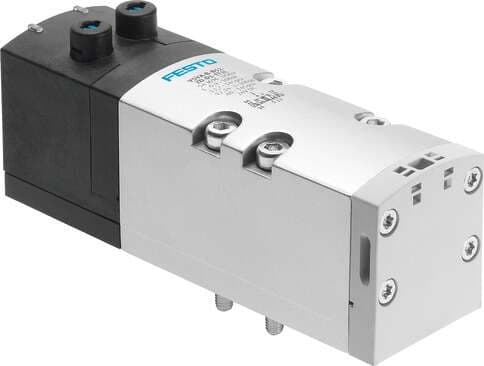

543692 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Operating voltage
  24V DC
• Type code
  VSVA
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• Signal status display
  LED
• Switching time off
  38 ms
• Max. positive test pulse with 0 signal
  1600 µs
• Coil characteristics
  24 V DC: 1.3 W
• Permissible voltage fluctuations
  +/- 10 %
• Relative air humidity
  0 - 90 %
• Pilot exhaust air port 82/84
  Optionally: Ducted
• Pneumatic connection 3
  Sub-base, size 1 as per ISO 5599-2
• Material of screws
  Steel, galvanized
• Valve function
  2x3/2, open, monostable
• Width
  42 mm
• Degree of protection
  IP65 NEMA 4
• Exhaust air function
  With flow control option Via individual sub-base
• Mounting position
  Any
• Manual override
  Detenting Covered
Pilot pressure
3 bar ... 10 bar
On switching time
20 ms
Nominal pick-up current per solenoid coil
60 mA to 30 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Type of mounting
On sub-base
Electrical connection
Plug-in as per ISO 5599-2
Note on materials
RoHS-compliant
Design
Piston gate valve
Type of control
Pilot-controlled
Symbol
00991819
Optimized flow rate of pneumatic valve pneumatically concatenated flow
1200 l/min
Optimized flow rate of pneumatic valve, pneumatically concatenated flow
1300 l/min
Surge resistance
2.5 kV
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
0 - No corrosion stress
Pilot air port 12/14
Sub-base, size 1 as per ISO 5599-2
Pneumatic connection 2
Sub-base, size 1 as per ISO 5599-2
Seals material
FPM NBR
Operating pressure
3 bar ... 10 bar
Pneumatic working port
Sub-base, size 1 as per ISO 5599-2 G3/8
Certification
CSA (OL) c UL us - Recognized (OL)
Pilot air supply port
External
Flow rate of pneumatic valve on individual sub-base
1200 l/min
Flow rate of pneumatic valve
1400 l/min
Max. negative test pulse on 1 signal
1100 µs
Contamination level
3
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
Sub-base, size 1 as per ISO 5599-2
Pneumatic connection 5
Sub-base, size 1 as per ISO 5599-2
Pilot pressure MPa
0.3 MPa ... 1 MPa
Standard nominal flow rate
1200 l/min
Product weight
442 g
Pneumatic connection 4
Sub-base, size 1 as per ISO 5599-2
Housing material
Die-cast aluminum PA
