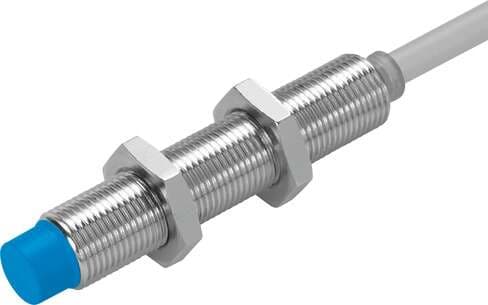

538272 Festo Proximity Sensors

Product Details

• Conforms to standard
  EN 60947-5-2
• Note on materials
  Free of copper and PTFE
• Reduction factors
  Aluminum = 0.5 Steel St 37 = 1.0
• Switching output
  Non-contact, 2-wire
• Max. switching frequency AC
  25 Hz
• Hysteresis
  0.02 mm ... 0.44 mm
• Symbol
  00991712
• Measuring principle
  Inductive
• Repetition accuracy
  0.1 mm
• Material of cable sheath
  TPE-U(PUR)
• Type of mounting
  With lock nut
• Ambient temperature with flexible cable installation
  -5 °C ... 50 °C
• Selection of additional sensor information
  For direct and alternating voltage
• Design
  Round
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Rated operating distance
  2 mm
• Ambient temperature
  -25 °C ... 85 °C
• Max. switching frequency DC
  1200 Hz
• Voltage drop
  ≤ 8 V
• Operating voltage range AC
  20 V ... 265 V
Mains frequency
50 Hz
Cable length
2.5 m
Mounting type
Flush
Housing material
Brass Nickel-plated
Electrical output
Non-contact, 2-wire
Type code
SIED
CE marking (see declaration of conformity)
As per EU EMC directive As per EU low voltage directive
Assured operating distance
1.62 mm
Switching element function
N/O contact
Max. output current
200 mA
DC operating voltage range
20 V ... 320 V
Insulating sheath material
PVC
Product weight
90 g
Selection of sensor version
Standard
Minimum load current
5 mA
Reverse polarity protection
for all electrical connections
Electrical connection
2-wire Cable
Tightening torque
10 Nm
Switching status indication
LED yellow
Corrosion resistance class (CRC)
1 - Low corrosion stress
Short-circuit protection
no
Idle current
≤ 1.5 mA
Size
M12
Degree of protection
IP67
