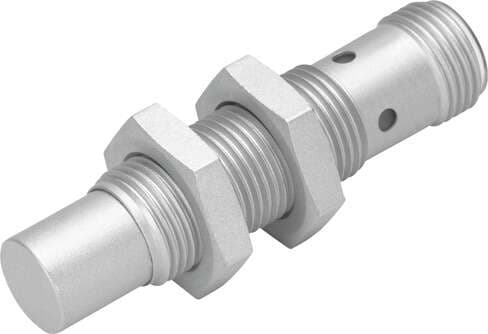

538264 Festo Proximity Sensors

Product Details

• Symbol
  00991702
• Ambient temperature
  -25 °C ... 70 °C
• Hysteresis
  ≤ 0.12 mm
• Residual current
  ≤ 0.1 mA
• Reverse polarity protection
  for all electrical connections
• Cable length
  2.5 m
• Degree of protection
  IP67
• Selection of sensor version
  Standard
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Measuring principle
  Inductive
• Reduction factors
  Aluminum = 0.5 Steel St 37 = 1.0
• Inductive protective circuit
  Installed and switching frequency < 10 Hz
• Electrical connection
  3-wire Cable
• Type of mounting
  Clamped
• Switching status indication
  LED yellow
• Ambient temperature with flexible cable installation
  -5 °C ... 70 °C
• Type code
  SIEH
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Note on materials
  Free of copper and PTFE
• Repetition accuracy
  0.02 mm
On time
0.02 ms
Short-circuit protection
Pulsed
Idle current
≤ 10 mA
Insulating sheath material
PVC
Product weight
18 g
Selection of additional sensor information
With increased switching distance
Design
Round
Rated operating distance
1 mm
Switching element function
N/O contact
Max. output current
100 mA
DC operating voltage range
10 V ... 30 V
Size
3 mm
Housing material
High-alloy stainless steel
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Conforms to standard
EN 60947-5-2
Assured operating distance
0.81 mm
Switching output
PNP
Max. switching frequency DC
3000 Hz
Voltage drop
≤ 2 V
Residual ripple
20 %
Material of cable sheath
TPE-U(PUR)
Mounting type
Flush
Electrical output
PNP
