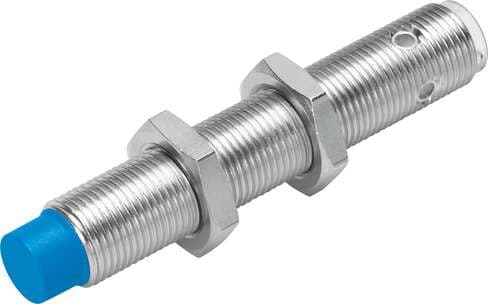

538269 Festo Proximity Sensors

Product Details

• Rated operating distance
  4 mm
• Ambient temperature
  -25 °C ... 85 °C
• Hysteresis
  0.03 mm ... 0.88 mm
• Minimum load current
  5 mA
• DC operating voltage range
  20 V ... 320 V
• Type of mounting
  With lock nut
• Degree of protection
  IP67
• Selection of sensor version
  Standard
• Design
  Round
• Note on materials
  Free of copper and PTFE
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU low voltage directive
• Switching output
  Non-contact, 2-wire
• Max. switching frequency AC
  25 Hz
• Mains frequency
  50 Hz
• Mounting type
  Not flush
• Product weight
  20 g
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Conforms to standard
  EN 60947-5-2
• Assured operating distance
  3.24 mm
• Switching element function
  N/C contact
Short-circuit protection
no
Size
M12
Selection of additional sensor information
For direct and alternating voltage
Symbol
00992846
Certification
RCM compliance mark c UL us - Listed (OL)
Measuring principle
Inductive
Repetition accuracy
0.2 mm
Max. switching frequency DC
900 Hz
Voltage drop
≤ 8 V
Idle current
≤ 1.5 mA
Electrical connection
2-pin Plug
Tightening torque
10 Nm
Switching status indication
LED yellow
Electrical output
Non-contact, 2-wire
Type code
SIED
Reduction factors
Aluminum = 0.6 Steel St 37 = 1.0
Max. output current
200 mA
Operating voltage range AC
20 V ... 265 V
Reverse polarity protection
for all electrical connections
Housing material
Brass Nickel-plated
