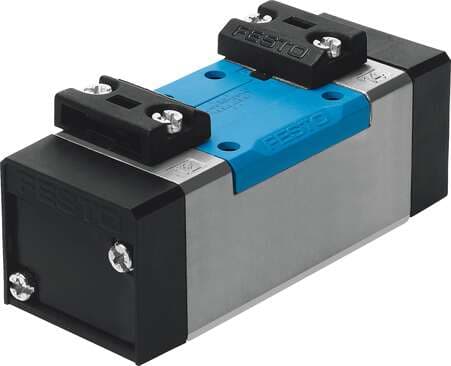

536022 Festo Directional Control Valves
Part#:536022
Alt. Part#:VL-5/3E-D-1-C-EX
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
pneumatic valve VL-5/3E-D-1-C-EX 5/3-way function, centre position exhausted Valve function: 5/3 exhausted, Type of actuation: pneumatic, Width: 42 mm, Standard nominal flow rate: 1200 l/min, Operating pressure: -0,9 - 16 bar
Product Details
- Valve function 5/3, exhausted
- Actuation type Pneumatic
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium -10 °C ... 60 °C
- Product weight 320 g
- Pneumatic connection 1 Sub-base, size 1 as per ISO 5599-1
- Pneumatic connection 4 Sub-base, size 1 as per ISO 5599-1
- Type code VL
- Width 42 mm
- Reset method Mechanical spring
- Exhaust air function With flow control option
- Type of control Direct
- Switching time off 45 ms
- ATEX category for dust II 2D
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot air port 14 Sub-base, size 1 as per ISO 5599-1
- Note on materials RoHS-compliant
- Nominal width 8 mm
- Mounting position Any
- Conforms to standard ISO 5599-1
- Symbol 00991021
- Type of (ignition) protection for dust Ex h IIIC T130°C Db
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 3 Sub-base, size 1 as per ISO 5599-1
- Seals material HNBR NBR
- Lap Overlap
- Pneumatic working port Sub-base, size 1 as per ISO 5599-1 G1/4
- Design Piston gate valve
- Sealing principle Soft
- ISO code 108
- On switching time 7 ms
- ATEX category gas II 2G
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Type of mounting On sub-base With through-hole
- Pneumatic connection 2 Sub-base, size 1 as per ISO 5599-1
- Housing material Die-cast aluminum
- Standard nominal flow rate 1200 l/min
- Operating pressure -0.9 bar ... 16 bar
- Width dimension 43 mm
- Manual override None
- Flow direction Reversible
- Pilot pressure 3 bar ... 16 bar
- Type of ignition protection for gas Ex h IIC T4 Gb
- Explosive ambient temperature -10°C <= Ta <= +60°C
- Noise level 85 dB(A)
- Pilot air port 12 Sub-base, size 1 as per ISO 5599-1
- Pneumatic connection 5 Sub-base, size 1 as per ISO 5599-1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
