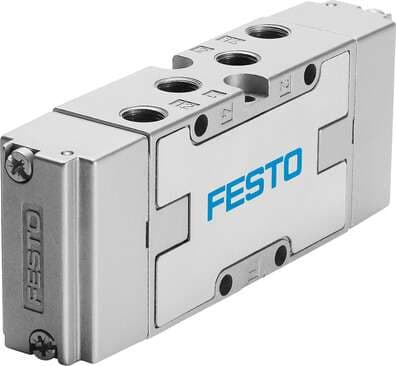

536046 Festo Directional Control Valves

Product Details

• Valve function
  5/3, closed
• Design
  Piston gate valve
• Width dimension
  27 mm
• Exhaust air function
  With flow control option
• Pilot pressure
  3 bar ... 10 bar
• ATEX category gas
  II 2G
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pilot air port 14
  G1/8
• Pneumatic connection 4
  G1/8
• Housing material
  Die-cast aluminum
• Actuation type
  Pneumatic
• Standard nominal flow rate
  1000 l/min
• Type code
  VL
• Pilot air supply port
  External
• Max. switching frequency
  3 Hz
• Type of ignition protection for gas
  Ex h IIC T4 Gb
• Storage temperature
  -40 °C ... 60 °C
• Type of mounting
  With through-hole
Pneumatic connection 5
G1/8
Operating pressure
-0.9 bar ... 10 bar
Nominal width
8 mm
Mounting position
Any
Type of control
Direct
On switching time
5 ms
ATEX category for dust
II 2D
Explosive ambient temperature
-10°C <= Ta <= +60°C
CE marking (see declaration of conformity)
as per EU explosion protection directive (ATEX)
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 2
G1/8
Seals material
NBR
Reset method
Mechanical spring
Flow direction
Reversible
Symbol
00991018
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Product weight
320 g
Pneumatic connection 1
G1/8
Note on materials
RoHS-compliant
Lap
Overlap
Width
26 mm
Pneumatic working port
G1/8
Sealing principle
Soft
Manual override
None
Switching time off
14 ms
Changeover time
23 ms
Type of (ignition) protection for dust
Ex h IIIC T130°C Db
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-10 °C ... 60 °C
Pilot air port 12
G1/8
Pneumatic connection 3
G1/8
